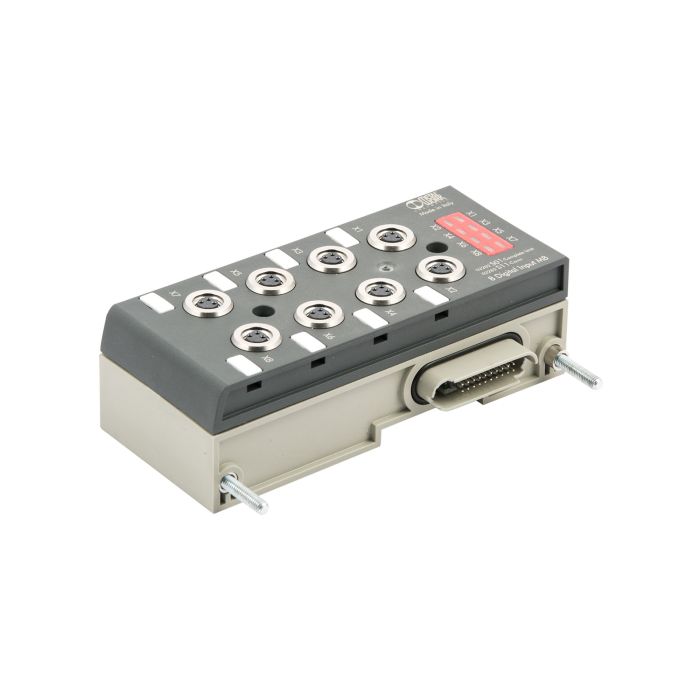

Signal module EB 80, 8x M8 digital inputs

(List price: €351.56)

€351.56

(€351.56 / piece)

excl. VAT and shipping

In stock

SKU

150887

Type Number

02282S01

EAN-Code

4047322814058

Signal module for valve island EB 80, 8x M8 digital inputs

The EB 80 sy... More

Free delivery from 75€ order value*

(€351.56 / piece)

Productdata

Downloads

Variants

accessories

Spareparts

Productdata

Signal module for valve island EB 80, 8x M8 digital inputs

The EB 80 system supports a wide range of input/output signal modules that can be easily added to fieldbus-connected or additional systems. Installation is simple: just remove the aluminum end plate on the left side of the “Electrical connection with fieldbus – E” module, insert the signal modules with tie rods, and reattach the plate.

Each signal module has two parts, ensuring flexibility and easy maintenance:

Lower section: universal transmission electronics.
Upper section: type-specific and easily replaceable, either with an identical or different module, without removing anything else from the system.

The special EB 80 Wireless Module supports both Bluetooth® and Wi-Fi, enabling access to data via the EB 80 I4.0 diagnostics functions. It enhances traditional servicing with advanced analytics for safe, reliable, and long-term operation. Using the dedicated “Metal Work EB80Up” app, the module connects to mobile devices via Bluetooth®. Additionally, it supports Ethernet communication through the MQTT protocol, allowing full network configuration.

Article No.

150887

Type No.

02282S01

Sealant

NBR

Protection IP

IP 65

Version

8 x M8 digital inputs

Supply voltage range

12 -10 % to 24 +30 % V DC

Operating voltage min.

10.8 V DC

Operating voltage max.

31.2 V DC

Max. admissible voltage

32 V DC*

Input signal

PNP / NPN (software-configurable)

Electrical connection

8x M8 female connector, 3-pin

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Housing

technopolymer

Module type

Module description

signal module

Sensors supply voltage

corresponding to the supply voltage

Protection

overload and short-circuit protected inputs

Input active signals

one LED for each input

Diagnostics

local via LED light and software message

Diagnostic signals

undervoltage, overvoltage, short-circuit, overload

Max. current for each connector

200 mA

Max. current for each module

500 mA

Input impedance

3.9 kΩ

detailed product information

https://www.riegler.de/de/en/eb-80-in-focus

Series

EB 80

Manufacturer Art. No.

02282S01

Manufacturer/brand

Metal Work

Class name

MAX

Page No.

WEB

Customs tariff number

84818099

Country of origin

Downloads

EB_80_Montageanleitung

EB_80_Signal-Module_Bedienungsanleitung

Datasheet

Request CAD Model

Variants

Art. No.	Type No.	Attributes	Version	Module type	Module description	Availability
150894	02282S04	4 x M8 analogue inputs	S	signal module	You can see the exact availability after logging in	€407.43 List price: €407.43 / piece Your price: €407.43 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€407.43 / piece) excl. VAT and shipping You can see the exact availability after logging in
150931	02282S20	Wi-Fi MQTT/ Bluetooth® LE	S	wireless module	You can see the exact availability after logging in	€515.74 List price: €515.74 / piece Your price: €515.74 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€515.74 / piece) excl. VAT and shipping You can see the exact availability after logging in
150928	02282S06	16 digital terminal block inputs	S	signal module	You can see the exact availability after logging in	€491.85 List price: €491.85 / piece Your price: €491.85 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€491.85 / piece) excl. VAT and shipping You can see the exact availability after logging in
150929	02282S07	16 digital terminal block outputs	S	signal module	You can see the exact availability after logging in	€491.85 List price: €491.85 / piece Your price: €491.85 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€491.85 / piece) excl. VAT and shipping You can see the exact availability after logging in
150891	02282S03	6 x M8 digital outputs + electrical power supply	S	signal module	You can see the exact availability after logging in	€373.81 List price: €373.81 / piece Your price: €373.81 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€373.81 / piece) excl. VAT and shipping You can see the exact availability after logging in
150888	02282S02	8 x M8 digital outputs	S	signal module	You can see the exact availability after logging in	€363.26 List price: €363.26 / piece Your price: €363.26 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€363.26 / piece) excl. VAT and shipping You can see the exact availability after logging in
150910	02282S05	4 x M8 analogue outputs	S	signal module	You can see the exact availability after logging in	€526.71 List price: €526.71 / piece Your price: €526.71 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€526.71 / piece) excl. VAT and shipping You can see the exact availability after logging in
150930	02282S08	4 x M8 analogue inputs for temperature measurement	S	signal module	You can see the exact availability after logging in	€601.97 List price: €601.97 / piece Your price: €601.97 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€601.97 / piece) excl. VAT and shipping You can see the exact availability after logging in
