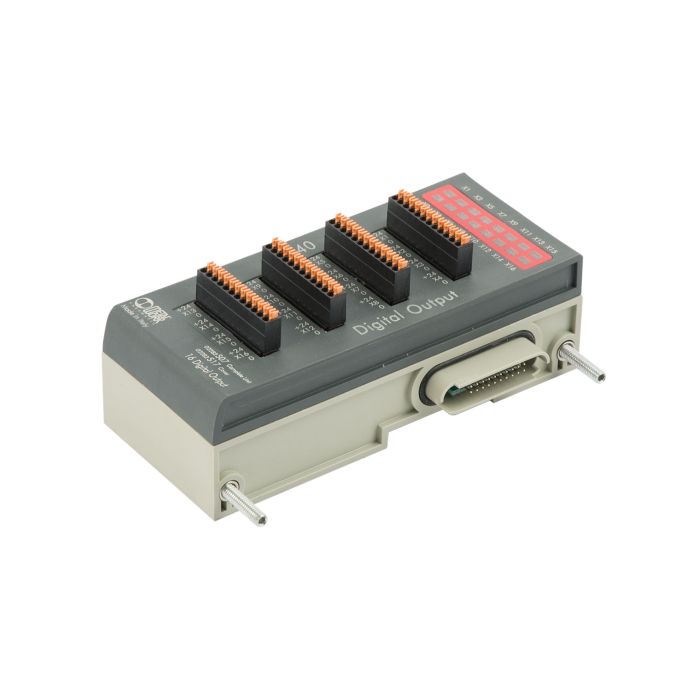

Signal module EB 80, 16x digital outputs, terminal block

(List price: €491.85)

€491.85

(€491.85 / piece)

excl. VAT and shipping

In stock

SKU

150929

Type Number

02282S07

EAN-Code

4047322814119

Signal module for valve island EB 80, 16x digital outputs, terminal block

... More

Free delivery from 75€ order value*

(€491.85 / piece)

Productdata

Downloads

Variants

accessories

Spareparts

Productdata

Signal module for valve island EB 80, 16x digital outputs, terminal block

The EB 80 system supports a wide range of input/output signal modules that can be easily added to fieldbus-connected or additional systems. Installation is simple: just remove the aluminum end plate on the left side of the “Electrical connection with fieldbus – E” module, insert the signal modules with tie rods, and reattach the plate.

Each signal module has two parts, ensuring flexibility and easy maintenance:

Lower section: universal transmission electronics.
Upper section: type-specific and easily replaceable, either with an identical or different module, without removing anything else from the system.

The special EB 80 Wireless Module supports both Bluetooth® and Wi-Fi, enabling access to data via the EB 80 I4.0 diagnostics functions. It enhances traditional servicing with advanced analytics for safe, reliable, and long-term operation. Using the dedicated “Metal Work EB80Up” app, the module connects to mobile devices via Bluetooth®. Additionally, it supports Ethernet communication through the MQTT protocol, allowing full network configuration.

Article No.

150929

Type No.

02282S07

Sealant

NBR

Protection IP

IP 40

Version

16 digital terminal block outputs

Supply voltage range

12 -10 % to 24 +30 % V DC

Operating voltage min.

10.8 V DC

Operating voltage max.

31.2 V DC

Max. admissible voltage

32 V DC*

Output signal

PNP / NPN (software-configurable)

Electrical connection

4x connector strip with spring clamping, 12-pin

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Housing

technopolymer

Module type

Module description

signal module

Output voltage

corresponding to the supply voltage

Protection

overload and short-circuit protected outputs

Output active signals

one LED for each output

Diagnostics

local via LED light and software message

Diagnostic signals

undervoltage, overvoltage, short-circuit, overload

Max. current for each connector

500 mA

Max. current for each module

3000 mA

detailed product information

https://www.riegler.de/de/en/eb-80-in-focus

Series

EB 80

Manufacturer Art. No.

02282S07

Manufacturer/brand

Metal Work

Class name

MAX

Page No.

WEB

Customs tariff number

84818099
