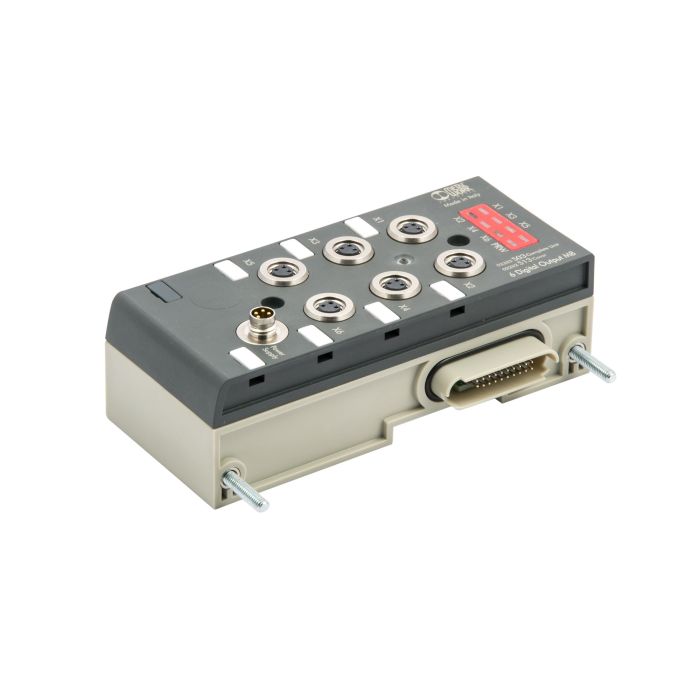

Signal module EB 80, 6x M8 digital outputs, power supply

Signal module for valve island EB 80, 6x M8 digital outputs, electrical power supply

The EB 80 system supports a wide range of input/output signal modules that can be easily added to fieldbus-connected or additional systems. Installation is simple: just remove the aluminum end plate on the left side of the “Electrical connection with fieldbus – E” module, insert the signal modules with tie rods, and reattach the plate.

Each signal module has two parts, ensuring flexibility and easy maintenance:

• Lower section: universal transmission electronics.
• Upper section: type-specific and easily replaceable, either with an identical or different module, without removing anything else from the system.

The special EB 80 Wireless Module supports both Bluetooth® and Wi-Fi, enabling access to data via the EB 80 I4.0 diagnostics functions. It enhances traditional servicing with advanced analytics for safe, reliable, and long-term operation. Using the dedicated “Metal Work EB80Up” app, the module connects to mobile devices via Bluetooth®. Additionally, it supports Ethernet communication through the MQTT protocol, allowing full network configuration.
