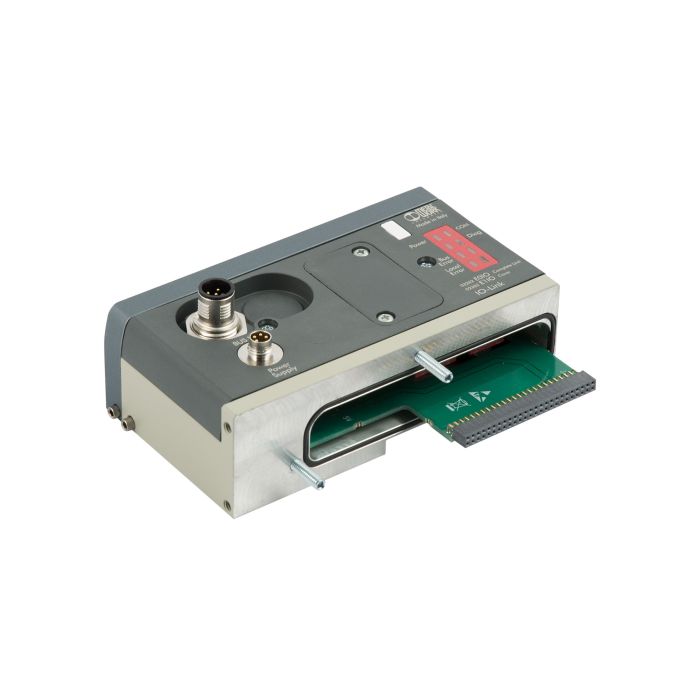

Electrical fieldbus connection EB 80, IO-Link 32 IN / 32 OUT

(List price: €532.33)

€532.33

(€532.33 / piece)

excl. VAT and shipping

In stock

SKU

150963

Type Number

02282E0IO

EAN-Code

4047322814393

Electrical fieldbus connection for valve island EB 80, IO-Link 32 IN / 32 OUT... More

Free delivery from 75€ order value*

(€532.33 / piece)

Productdata

Downloads

Variants

accessories

Spareparts

Productdata

Electrical fieldbus connection for valve island EB 80, IO-Link 32 IN / 32 OUT

The Electrical Connection – E subsystem powers EB 80 systems, transmits control signals to solenoid valves, manages I/O communication, and handles diagnostics. Available in multi-pole or fieldbus versions, the valve island operates identically with both (patented), supporting parallel and serial controls.

Smart electronics across all modules enable advanced diagnostics. The system supports 12 VDC and 24 VDC operation (patented), tolerates overvoltages up to 31.2 VDC, and functions with a minimum pilot voltage of 10.8 VDC.

Multi-pole versions retain full modularity and diagnostics and feature a single-piece metal housing. Fieldbus versions consist of a metal lower body, independent of protocol, and a technopolymer upper section tailored to specific bus protocols (except the IO-Link 64 OUT module, which comes with one-piece metal housing).

Article No.

150963

Type No.

02282E0IO

Sealant

NBR

Power input

max. 3.15 W

Protection IP

IP 65

Duty cycle

100 %

Version

IO-Link 32 IN / 32 OUT

Supply voltage range

12 -10 % to 24 +30 % V DC

Operating voltage min.

10.8 V DC

Operating voltage max.

31.2 V DC

Max. admissible voltage

32 V DC*

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Housing

technopolymer / painted aluminium

Module type

Module description

electrical connection with fieldbus

Protection

module: overload, polarity inversion | output: overload, SC

Diagnostics

IO-Link: LED + software info, outputs: LED + state bytes

Diagnostic signals

SC, coil fail., UV/OV, mod. com., switch state, dev. config.

Power supply without controlled valves

4 W for module "electr. conn.-E" + 0.25 W per "Base-B"

Solenoid pilot power on start-up (speed up)

3 W for 15 ms

Max. number of simultaneous solenoid controls on activation

38 (greater number possible with "intermediate module - M")

Fieldbus

IO-Link Version 1.1

Communication speed

230.4 Kbps (COM3)

Vendor ID / Device ID

1046 (hex 0x0416) / 32 (hex 0x000020)

Process data length

5 byte of input / 4 byte of output

Maximum number of solenoid controls

Max. admissible current for valve supply, continuous

4 A

Max. admissible current for valve supply, instantaneous

6 A

Max. admissible current for bus/signal supply, continuous

4 A

Max. admissible current for bus/signal supply, instantaneous

6 A

Maximum number of digital input signals

detailed product information

https://www.riegler.de/de/en/eb-80-in-focus

Series

EB 80

Manufacturer Art. No.

02282E0IO

Manufacturer/brand

Metal Work

Class name

MAX

Page No.

WEB

Customs tariff number

84818099

Country of origin

Downloads

EB_80_Montageanleitung

EB_80_IO-Link_32IN-OUT_Bedienungsanleitung

Datasheet

EB_80_Manager_und_Firmware_Update_Feldbus

Request CAD Model
