Electrical fieldbus connection EB 80, additional el. connection

(List price: €284.43)

€284.43

(€284.43 / piece)

excl. VAT and shipping

In stock

SKU

150966

Type Number

02282E0AD

EAN-Code

4047322814423

Electrical fieldbus connection for valve island EB 80, additional electrical ... More

Free delivery from 75€ order value*

(€284.43 / piece)

Productdata

Downloads

Variants

accessories

Spareparts

Productdata

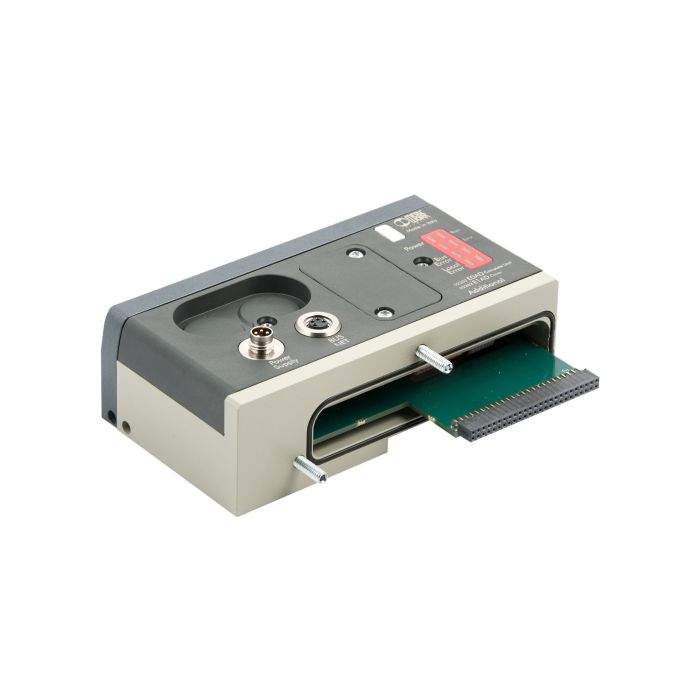

Electrical fieldbus connection for valve island EB 80, additional electrical connection

The Electrical Connection – E subsystem powers EB 80 systems, transmits control signals to solenoid valves, manages I/O communication, and handles diagnostics. Available in multi-pole or fieldbus versions, the valve island operates identically with both (patented), supporting parallel and serial controls.

Smart electronics across all modules enable advanced diagnostics. The system supports 12 VDC and 24 VDC operation (patented), tolerates overvoltages up to 31.2 VDC, and functions with a minimum pilot voltage of 10.8 VDC.

Multi-pole versions retain full modularity and diagnostics and feature a single-piece metal housing. Fieldbus versions consist of a metal lower body, independent of protocol, and a technopolymer upper section tailored to specific bus protocols (except the IO-Link 64 OUT module, which comes with one-piece metal housing).

Article No.

150966

Type No.

02282E0AD

Sealant

NBR

Power input

max. 3.15 W

Protection IP

IP 65

Duty cycle

100 %

Version

additional terminals

Supply voltage range

12 -10 % to 24 +30 % V DC

Operating voltage min.

10.8 V DC

Operating voltage max.

31.2 V DC

Max. admissible voltage

32 V DC*

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Housing

technopolymer / painted aluminium

Module type

Module description

electrical connection with fieldbus

Protection

module: overload, polarity inversion | output: overload, SC

Diagnostics

LED on valve and electr. connection, software information

Diagnostic signals

SC, coil fail., UV/OV, mod. com., switch state, dev. config.

Power supply without controlled valves

4 W for module "electr. conn.-E" + 0.25 W per "Base-B"

Solenoid pilot power on start-up (speed up)

3 W for 15 ms

Max. number of simultaneous solenoid controls on activation

38 (greater number possible with "intermediate module - M")

Maximum number of solenoid controls

128

Max. admissible current for valve supply, continuous

4 A

Max. admissible current for valve supply, instantaneous

6 A

Max. admissible current for bus/signal supply, continuous

4 A

Max. admissible current for bus/signal supply, instantaneous

6 A

detailed product information

https://www.riegler.de/de/en/eb-80-in-focus

Series

EB 80

Manufacturer Art. No.

02282E0AD

Manufacturer/brand

Metal Work

Class name

MAX

Page No.

WEB

Customs tariff number

84818099

Country of origin

Downloads

EB_80_Montageanleitung

Datasheet

Request CAD Model

Variants

Art. No.	Type No.	Attributes	Version	Module type	Module description	Availability
150964	02282E0LK	IO-Link 64 OUT	E	electrical connection with fieldbus	You can see the exact availability after logging in	€291.35 List price: €291.35 / piece Your price: €291.35 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€291.35 / piece) excl. VAT and shipping You can see the exact availability after logging in
150963	02282E0IO	IO-Link 32 IN / 32 OUT	E	electrical connection with fieldbus	You can see the exact availability after logging in	€532.33 List price: €532.33 / piece Your price: €532.33 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€532.33 / piece) excl. VAT and shipping You can see the exact availability after logging in
150957	02282E0EN	EtherNet/IP	E	electrical connection with fieldbus	You can see the exact availability after logging in	€597.95 List price: €597.95 / piece Your price: €597.95 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€597.95 / piece) excl. VAT and shipping You can see the exact availability after logging in
150961	02282E0PB	Profibus DP	E	electrical connection with fieldbus	You can see the exact availability after logging in	€638.29 List price: €638.29 / piece Your price: €638.29 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€638.29 / piece) excl. VAT and shipping You can see the exact availability after logging in
150965	02282E0CC	CC-Link IE Field Basic	E	electrical connection with fieldbus	You can see the exact availability after logging in	€638.29 List price: €638.29 / piece Your price: €638.29 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€638.29 / piece) excl. VAT and shipping You can see the exact availability after logging in
150960	02282E0PN	Profinet IO	E	electrical connection with fieldbus	You can see the exact availability after logging in	€597.95 List price: €597.95 / piece Your price: €597.95 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€597.95 / piece) excl. VAT and shipping You can see the exact availability after logging in
150958	02282E0EC	EtherCAT	E	electrical connection with fieldbus	You can see the exact availability after logging in	€597.95 List price: €597.95 / piece Your price: €597.95 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€597.95 / piece) excl. VAT and shipping You can see the exact availability after logging in
150959	02282E0CN	CANopen	E	electrical connection with fieldbus	You can see the exact availability after logging in	€638.29 List price: €638.29 / piece Your price: €638.29 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€638.29 / piece) excl. VAT and shipping You can see the exact availability after logging in
