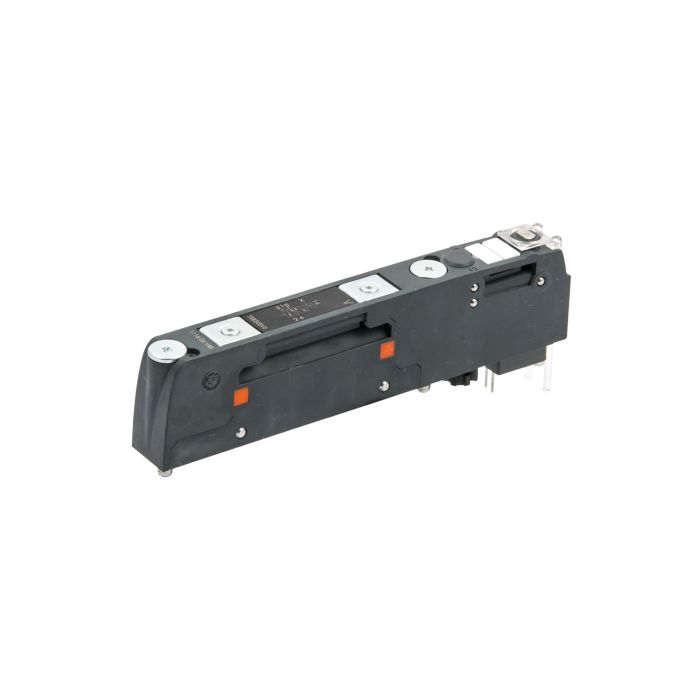

Valve EB 80, 5/2-way monostabil, manual control bistable
(List price: €43.69)
€43.69
List price:
€43.69 / piece
Your price:
€43.69 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
153114
Customer product code
Type Number
708203V1
Article name from customer
EAN-Code
4047322817769
Valve for valve island EB 80, 5/2-way monostabil, manual control bistable
... MoreYou can see the exact availability after logging in
List price:
€43.69 / piece
Your price:
€43.69 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata
Valve for valve island EB 80, 5/2-way monostabil, manual control bistable
The EB 80 valves deliver high flow in a compact 14 mm format, eliminating the need for larger sizes and supporting component standardisation. Available in all major functions – from 2/2 to 5/3.
Each valve is securely mounted with two M4 captive screws and comes equipped with manual control (monostable or bistable), LED indicator, a plate showing the schematic symbol and technical data, plus white label plates for customer marking.
The following special versions complete the valve range:
- High-flow valves with innovative flow-boosting design
- Bypass element for enhanced supply/relief or custom circuits
- Circuit shut-off valve to connect/disconnect all station valves
- Dummy valve to plug unused base positions
Article No.
153114
Type No.
708203V1
Sealant
NBR
Manual control
monostable
Protection IP
IP 65
Version
5/2 monostable
Flow rate measurement 1
with port 2/4 Ø 4 mm, at 6.3 bar ∆p 1 bar
Flow rate measurement 2
with port 2/4 Ø 6 mm, at 6.3 bar ∆p 1 bar
Flow rate 1
350 Nl/min
Flow rate 2
650 Nl/min
Flow rate 3
800 Nl/min
Actuation response time at 6 bar (TRA)
12
Reset response time at 6 bar (TRR)
45
Min. ambient temperature
-10 °C
Max. ambient temperature
50 °C
Housing
technopolymer
Module type
V
Module description
valve
Medium
filtered, unlubricated compressed air
Operating pressure max. with int. pilot air
8 bar
Operating pressure max. with external pilot air
10 bar
Max. pilot pressure
8 bar
Min. pilot pressure
3 bar
Required purity class in accordance w. ISO 8573-1
4.7.3
detailed product information
Series
EB 80
Manufacturer Art. No.
708203V1
Manufacturer/brand
Metal Work
Class name
MAX
Page No.
WEB
Customs tariff number
84818099
Country of origin
IT
Downloads
Variants
| Art. No. | Type No. | Attributes | Manual control | Version | Module type | Module description | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|
| 153125 | 708203N0 | dummy valve (plug) | N | valve | You can see the exact availability after logging in | €7.99 List price: €7.99 / piece Your price: €7.99 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | |||
| 153126 | 708203Y8 | bypass valve (additional air supply) | Y | valve | You can see the exact availability after logging in | €12.20 List price: €12.20 / piece Your price: €12.20 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | |||
| 153122 | 708203J1 | bistable | 3/2 NO high-flow | J | valve | You can see the exact availability after logging in | €43.64 List price: €43.64 / piece Your price: €43.64 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 153106 | 708203Z1 | bistable | 2 x 2/2 NC | Z | valve | You can see the exact availability after logging in | €65.50 List price: €65.50 / piece Your price: €65.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 153107 | 708203I0 | monostable | 2 x 3/2 NC or 5/3 mid-position exhausted | I | valve | You can see the exact availability after logging in | €65.50 List price: €65.50 / piece Your price: €65.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 153109 | 708203W0 | monostable | 2 x 3/2 NO or 5/3 mid-position pressurised | W | valve | You can see the exact availability after logging in | €65.50 List price: €65.50 / piece Your price: €65.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 153117 | 708203O0 | monostable | 5/3 mid-position closed | O | valve | You can see the exact availability after logging in | €65.50 List price: €65.50 / piece Your price: €65.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 153119 | 708203G0 | monostable | 3/2 NC high-flow | G | valve | You can see the exact availability after logging in | €43.64 List price: €43.64 / piece Your price: €43.64 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
Spareparts
€4.96
List price:
€4.96 / piece
Your price:
€4.96 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
Quantity unit:
piece
Content:
piece
excl. VAT and shipping
You can see the exact availability after logging in
EB 80 screw for fixing the valve on the base plate, PU 10 pcs.
Article No.: 153920
Type No.: 02282R3000
