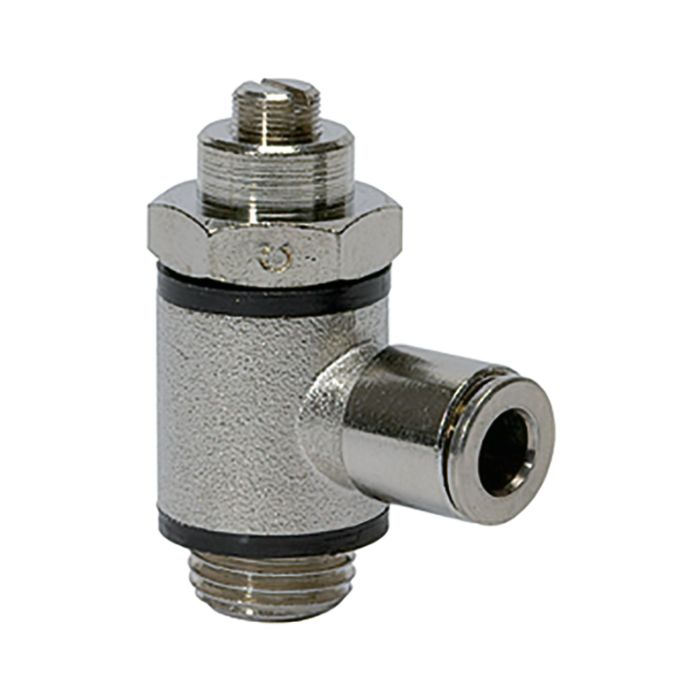

Throttle check valve, Discharge throttle (C) push-in connector
In stock
SKU
106938
Customer product code
Type Number
343.018-8
Article name from customer
EAN-Code
4047322181341
Throttle check valve, Discharge throttle (C) push-in connector hose 8, G 1/8,... More
Productdata
Throttle check valve, Discharge throttle (C) push-in connector hose 8, G 1/8, PN max. 10 bar, Temperature -20 °C to 80 °C
For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.
Article No.
106938
Type No.
343.018-8
Function
outgoing air restriction
Version
adjustable with slotted-head screwdriver
Design
L-shape, banjo bolt type
Port 1
plug connection Ø 8 mm
Port 2
G 1/8 ET
Type of connection
plug-in connector
Medium
filtered, lubricated compressed air
Min. operating pressure
0 bar
Max. operating pressure
10 bar
Min. temperature range
-20 °C
Max. temperature range
80 °C
Body
nickel-plated brass
Sealant
NBR
Captive seals
polyamide glass fibre-reinforced (only parts in banjo bolt construction)
B
32 mm
C
23.7 mm
a/f
14 mm
Class name
PLUS
Page No.
WEB
Customs tariff number
84812090
Country of origin
IT
Downloads
Variants
| Art. No. | Type No. | Attributes | Design | Port 1 | Port 2 | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|
| 106920 | 358.018-1/8 | L-shape, banjo bolt type | G 1/8 IT | G 1/8 ET | ||||
| 115705 | 343.018-6-D | L-shape, swivel type | plug connection Ø 6 mm | G 1/8 ET | ||||
| 106937 | 343.018-6 | L-shape, banjo bolt type | plug connection Ø 6 mm | G 1/8 ET | ||||
| 106939 | 343.014-6 | L-shape, banjo bolt type | plug connection Ø 6 mm | G 1/4 ET | ||||
| 106932 | 358.014-10 | L-shape, banjo bolt type | screw fitting Ø 10/8 mm | G 1/4 ET | You can see the exact availability after logging in | €12.45 List price: €12.45 / piece Your price: €12.45 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 106922 | 358.038-3/8 | L-shape, banjo bolt type | G 3/8 IT | G 3/8 ET | ||||
| 116502 | 343.038-10-D | L-shape, swivel type | plug connection Ø 10 mm | G 3/8 ET | ||||
| 106921 | 358.014-1/4 | L-shape, banjo bolt type | G 1/4 IT | G 1/4 ET | ||||
