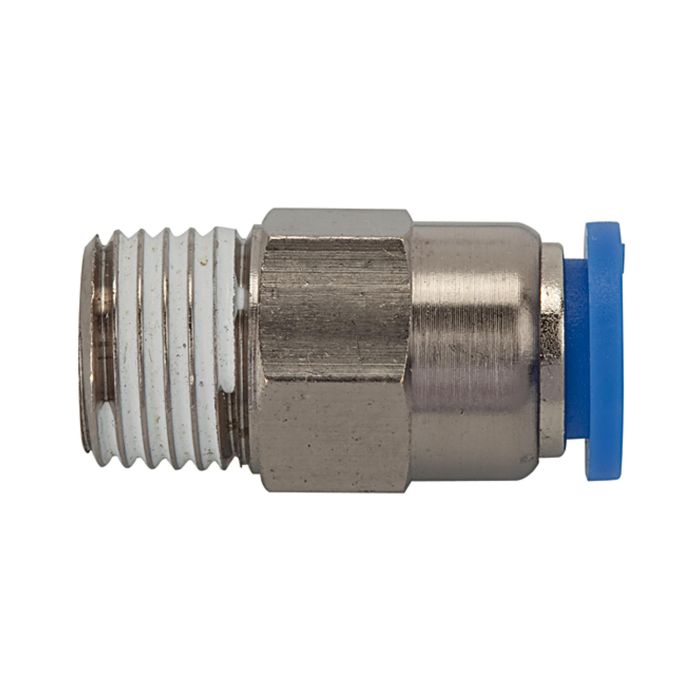

Straight push-in fitting »Blue Series«, Self-locking, R 1/8 o.
In stock
SKU
110171
Customer product code
Type Number
196.184
Article name from customer
EAN-Code
4047322266895
Straight push-in fitting »Blue Series«, Self-locking, R 1/8 o., for hose exte... More
Productdata
Straight push-in fitting »Blue Series«, Self-locking, R 1/8 o., for hose exterior Ø 4 mm, pmax 10 bar
The air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Article No.
110171
Type No.
196.184
Min. working pressure
0 bar
Max. working pressure
10 bar
Max. temperature range
60 °C
Min. temperature range
0 °C
Material
plastic and nickel-plated brass
Sealant
NBR
Medium
compressed air
Function
self-locking
Recommended hose/tube material
PA, PU
Applications
compressed air systems
Sleeve
plastic blue
Thread
R 1/8 ET
for tube O.D.
4 mm
L1
27.5 mm
a/f
10 mm
Standard thread
ISO 7-1
Version
with PTFE thread coating
detailed product information
Series
Blue series
Class name
EASY
Page No.
WEB
Customs tariff number
39174000
Country of origin
CN
Downloads
Variants
| Art. No. | Type No. | Attributes | Function | Thread | for tube O.D. | a/f | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|
| 110180 | 196.1210 | self-locking | R 1/2 ET | 10 | 21 | ||||
| 110178 | 196.3810 | self-locking | R 3/8 ET | 10 | 17 | ||||
| 110177 | 196.388 | self-locking | R 3/8 ET | 8 | 17 | ||||
| 110174 | 196.146 | self-locking | R 1/4 ET | 6 | 14 | ||||
| 110172 | 196.186 | self-locking | R 1/8 ET | 6 | 12 | ||||
| 110175 | 196.148 | self-locking | R 1/4 ET | 8 | 14 | ||||
| 110173 | 196.188 | self-locking | R 1/8 ET | 8 | 14 | ||||
| 110176 | 196.1410 | self-locking | R 1/4 ET | 10 | 17 | ||||
