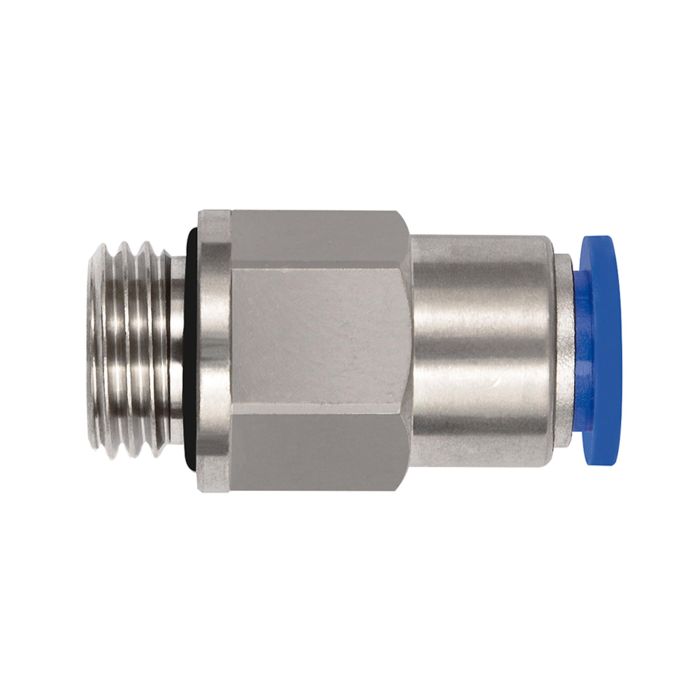

Straight push-in fitting »Blue Series«, Self-locking, G 1/4 o.
In stock
SKU
151340
Customer product code
Type Number
195.148-1
Article name from customer
EAN-Code
4047322591867
Straight push-in fitting »Blue Series«, Self-locking, G 1/4 o., for hose exte... More
Productdata
Straight push-in fitting »Blue Series«, Self-locking, G 1/4 o., for hose exterior Ø 8 mm, pmax 10 bar
The air supply is completely shut off as soon as the hose is disconnected from the union.
The flow rate is only guaranteed if the hose is securely inserted.
Article No.
151340
Type No.
195.148-1
Min. working pressure
0 bar
Max. working pressure
10 bar
Max. temperature range
60 °C
Min. temperature range
0 °C
Material
plastic and nickel-plated brass
Sealant
NBR
Medium
compressed air
Function
self-locking
Recommended hose/tube material
PA, PU
Applications
compressed air systems
Sleeve
plastic blue
Thread
G 1/4 ET
for tube O.D.
8 mm
L1
31.9 mm
a/f
15 mm
Standard thread
DIN EN ISO 228-1
Version
with o-ring (NBR)
detailed product information
Series
Blue series
Class name
EASY
Page No.
WEB
Customs tariff number
39174000
Country of origin
DK
Downloads
Variants
| Art. No. | Type No. | Attributes | Function | Thread | for tube O.D. | a/f | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|
| 151341 | 195.1410-1 | self-locking | G 1/4 ET | 10 | 17 | ||||
