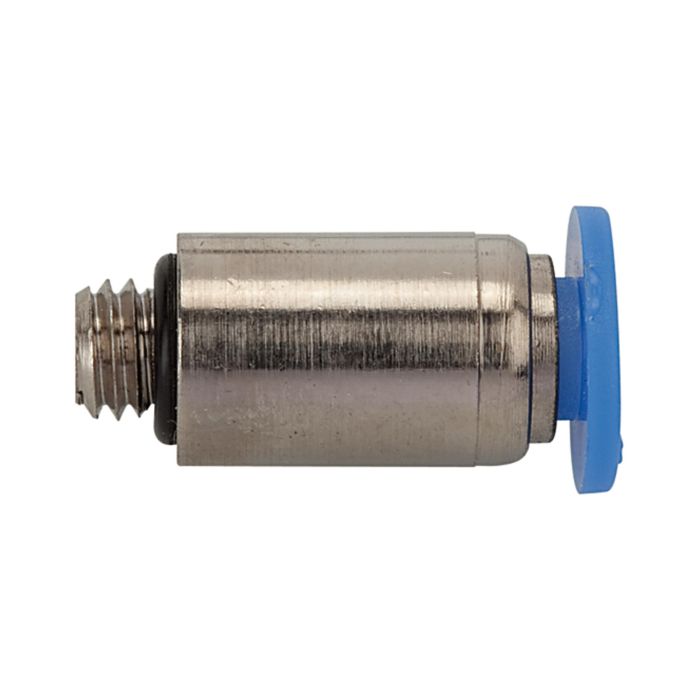

Straight push-in fitting »Blue Series« mini, round, M3
In stock
SKU
109014
Customer product code
Type Number
POC-33
Article name from customer
EAN-Code
4047322264679
Straight push-in fitting »Blue Series« mini, round, M3, for hose exterior Ø 3... More
Productdata
Straight push-in fitting »Blue Series« mini, round, M3, for hose exterior Ø 3 mm, pmax 10 bar
Push-in fittings series manufactured in plastic and nickel-plated brass.
Space-saving miniature design.
Article No.
109014
Type No.
POC-33
Min. working pressure
-0.95 bar
Max. working pressure
10 bar
Max. temperature range
60 °C
Min. temperature range
0 °C
Material
plastic and nickel-plated brass
Sealant
NBR
Medium
compressed air
Recommended hose/tube material
PA, PU
Applications
compressed air systems, automotive,packaging industry,vacuum
Sleeve
plastic
Thread
M3 ET
for tube O.D.
3 mm
L1
15 mm
Standard thread
DIN 13-1
detailed product information
Series
Blue series mini
Class name
EASY
Page No.
WEB
Customs tariff number
39174000
Country of origin
CN
