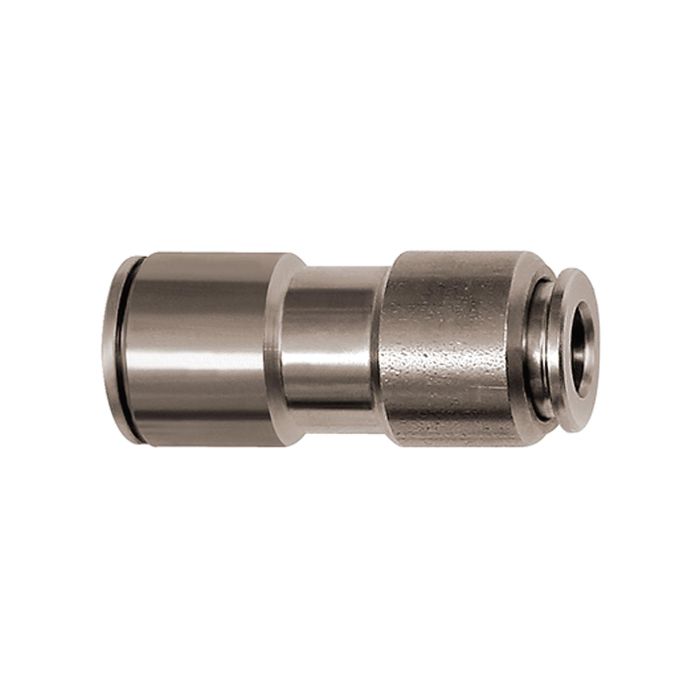

Straight push-in connector, reducing, for hose exterior Ø 6/4 mm
In stock
SKU
110424
Customer product code
Type Number
47.0604 ES
Article name from customer
EAN-Code
4047322387262
Straight push-in connector, reducing, for hose exterior Ø 6/4 mm, Working pre... More
Productdata
Straight push-in connector, reducing, for hose exterior Ø 6/4 mm, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Article No.
110424
Type No.
47.0604 ES
Max. working pressure
15 bar
Working pressure pulsate
10 bar
Min. medium temperature
-20 °C
Max. medium temperature
150 °C
Min. operating temperature
-20 °C
Max. operating temperature
150 °C
Material
stainless steel 1.4404
Sealant
FKM, FPM
Recommended hose/tube material
PVDF, PTFE, PA, PU
for tube O.D. 1
6 mm
for tube O.D. 2
4 mm
L1
31 mm
Version
reducing
Series
inox line
Class name
STAINLESS_STEEL
Page No.
WEB
Customs tariff number
73071990
Country of origin
IT
Downloads
Variants
| Art. No. | Type No. | Attributes | Availability | Price | Options |
|---|---|---|---|---|---|
| 110425 | 47.0806 ES | ||||
