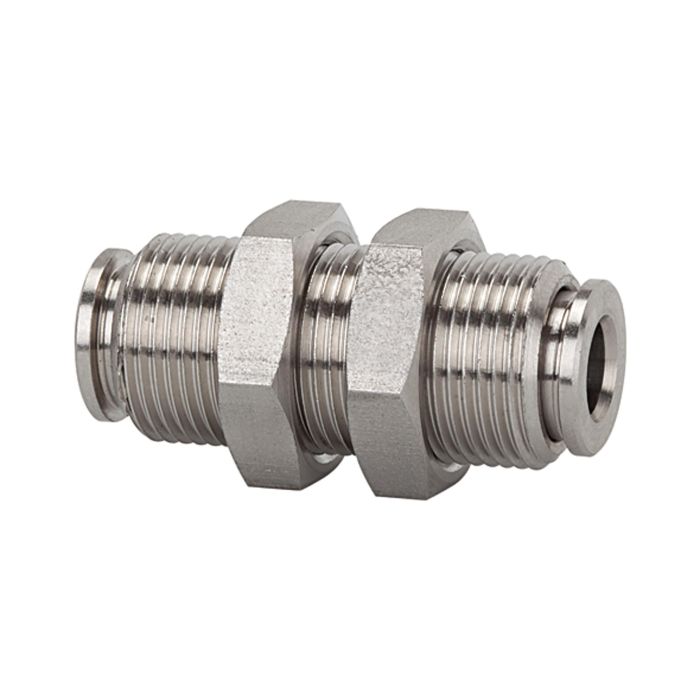

Straight push-in bulkhead connector, M12x1, for hose exterior Ø 4
In stock
SKU
110426
Customer product code
Type Number
51.012-4 ES
Article name from customer
EAN-Code
4047322269056
Straight push-in bulkhead connector, M12x1, for hose exterior Ø 4 mm, Working... More
Productdata
Straight push-in bulkhead connector, M12x1, for hose exterior Ø 4 mm, Working pressure max. 15 bar, Stainless steel 1.4404
For use with aggressive media and in areas susceptible to corrosive outside
influences, in the food processing industry and in hygienic and sanitary applications.
Article No.
110426
Type No.
51.012-4 ES
Max. working pressure
15 bar
Working pressure pulsate
10 bar
Min. medium temperature
-20 °C
Max. medium temperature
150 °C
Min. operating temperature
-20 °C
Max. operating temperature
150 °C
Material
stainless steel 1.4404
Sealant
FKM, FPM
Recommended hose/tube material
PVDF, PTFE, PA, PU
for tube O.D.
4 mm
L1
28 mm
Max. L2
11 mm
a/f
15 mm
Thread for panel mounting
M12x1.0 ET
Series
inox line
Class name
STAINLESS_STEEL
Page No.
WEB
Customs tariff number
73071990
Country of origin
IT
Downloads
Variants
| Art. No. | Type No. | Attributes | Thread | for tube O.D. | a/f | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|
| 110429 | 51.018-10 ES | 10 | 21 | |||||
| 110428 | 51.016-8 ES | 8 | 19 | |||||
| 110430 | 51.020-12 ES | 12 | 24 | You can see the exact availability after logging in | €81.11 List price: €81.11 / piece Your price: €81.11 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | |||
| 110427 | 51.014-6 ES | 6 | 17 | |||||
