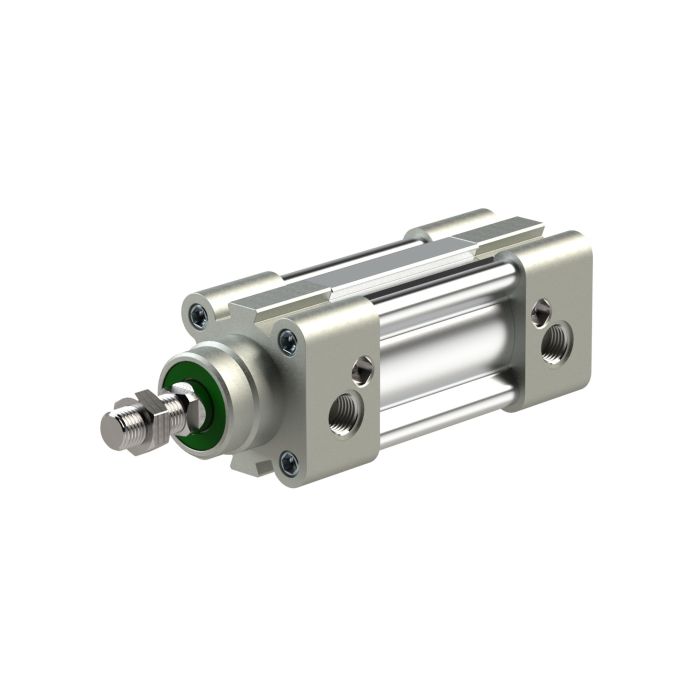

Standard cylinder, double-acting, Piston Ø 32, Stroke 25, G 1/8

In stock

SKU

114636

Type Number

10.DMD.32025

EAN-Code

4047322309769

Standard cylinder »SE« ISO 15552, double-acting, Piston Ø 32, Stroke 25, G 1/... More

Free delivery from 75€ order value*

Productdata

Downloads

Variants

accessories

Alternate Articles

Productdata

Standard cylinder »SE« ISO 15552, double-acting, Piston Ø 32, Stroke 25, G 1/8, Working pressure 1 - 10 bar, Temp. -20°C to 70°C

These cylinders are ideal for a wide range of applications owing to their robust design and ecxellent value for money.

The standard type has a double-acting cylinder and features a magnetic piston as well as integrated cushioning.

The magnetic switches are mounted in T-slots on three sides of the body.

Suitable for filtered, unlubricated or lubricated compressed air.

If lubrication is used, it must be continuous.

Article No.

114636

Type No.

10.DMD.32025

Min. working pressure

1 bar

Max. working pressure

10 bar

Min. temperature range

-20 °C

Max. temperature range

70 °C

Sealant

NBR, TPU

Tube

aluminium jacket with integrated T-slots

Piston gasket

TPU (thermoplastic polyurethane)

Piston rod gasket

TPU (thermoplastic polyurethane)

Piston Ø

32 mm

Stroke

25 mm

Connection

G 1/8

Piston rod

Steel, thick-chromed

Piston rod ET

M10x1.25

Piston rod-Ø

12 mm

Piston

aluminium

Function

double-acting

Magnet

with magnet

Standard

acc. to ISO 15552

Cushioning

cushioned

Piston rod thread

male piston rod

Series

SE series

Class name

EASY

Page No.

WEB

Customs tariff number

84123100

Country of origin

Downloads

Datasheet

CAD data

Variants

Art. No.	Type No.	Attributes	Piston Ø	Stroke	Connection	Piston rod ET	Magnet	Standard
114651	10.DMD.32500	32	500	G 1/8	M10x1.25	with magnet	acc. to ISO 15552	Successor product: 170587
114669	10.DMD.40700	40	700	G 1/4	M12x1.25	with magnet	acc. to ISO 15552	Successor product: 170605
114683	10.DMD.50300	50	300	G 1/4	M16x1.5	with magnet	acc. to ISO 15552	Successor product: 170618
114672	10.DMD.50050	50	50	G 1/4	M16x1.5	with magnet	acc. to ISO 15552	Successor product: 170608
114689	10.DMD.50700	50	700	G 1/4	M16x1.5	with magnet	acc. to ISO 15552	Successor product: 170624
114666	10.DMD.40450	40	450	G 1/4	M12x1.25	with magnet	acc. to ISO 15552	Successor product: 170602
114670	10.DMD.40800	40	800	G 1/4	M12x1.25	with magnet	acc. to ISO 15552	Successor product: 170606
114681	10.DMD.50200	50	200	G 1/4	M16x1.5	with magnet	acc. to ISO 15552	Successor product: 170616
