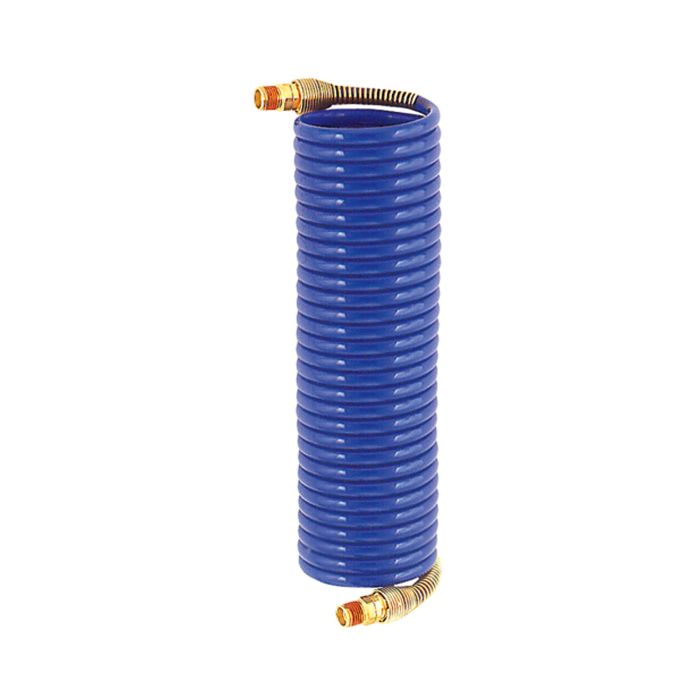

Spiral hose, Fitting, Nylon, R 1/8, Hose Ø 4.7x3.1, 2.5 m
In stock
SKU
113396
Customer product code
Type Number
SP 5-250
Article name from customer
EAN-Code
4047322166065
Spiral hose, Fitting and kink protection spring, Nylon 11 PA, R 1/8, Hose Ø 4... More
Productdata
Spiral hose, Fitting and kink protection spring, Nylon 11 PA, R 1/8, Hose Ø 4.7x3.1, PN at 23 °C max. 22 bar, Length 2.5 m
These hoses allow gaseous and liquid media to flow safely and efficiently (Air, gases, oils, greases, fuels, organic and inorganic substances).
Thanks to their small coil diameter, they are compact, easy to handle and lightweight.
Very good recoil force owing to the use of nylon 11 (PA).
Article No.
113396
Type No.
SP 5-250
Min. operating temperature
-40 °C
Max. operating temperature
100 °C
Max. operating pressure at 23 °C
22 bar
Hose material
nylon
Coil O.D.
38 mm
Tube O.D.
4.7 mm
Tube I.D.
3.1 mm
No. of coils
36
Thread
R 1/8 ET
Service length max.
2.5 m
Class name
MAX
Page No.
WEB
Customs tariff number
39173300
Country of origin
US
Downloads
Variants
| Art. No. | Type No. | Attributes | Coil O.D. | Tube O.D. | Tube I.D. | No. of coils | Thread | Service length max. | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 113397 | SP 5-500 | 38 | 4.7 | 3.1 | 72 | R 1/8 ET | 5 | ||||
| 113404 | SP 8-750 | 75 | 7.9 | 6.3 | 45 | R 1/4 ET | 7.5 | ||||
| 113405 | SP 10-250 | 115 | 9.5 | 7.9 | 10 | R 1/4 ET | 2.5 | ||||
| 113401 | SP 6-750 | 75 | 6.3 | 4.8 | 45 | R 1/4 ET | 7.5 | ||||
| 113408 | SP 12-250 | 140 | 11.8 | 9.5 | 8 | R 3/8 ET | 2.5 | ||||
| 136342 | SP 8-1000 | 75 | 7.9 | 6.3 | 60 | R 1/4 ET | 10 | ||||
| 113402 | SP 8-250 | 75 | 7.9 | 6.3 | 15 | R 1/4 ET | 2.5 | ||||
| 136344 | SP 12-1000 | 140 | 11.8 | 9.5 | 30 | R 3/8 ET | 10 | You can see the exact availability after logging in | €120.56 List price: €120.56 / piece Your price: €120.56 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
