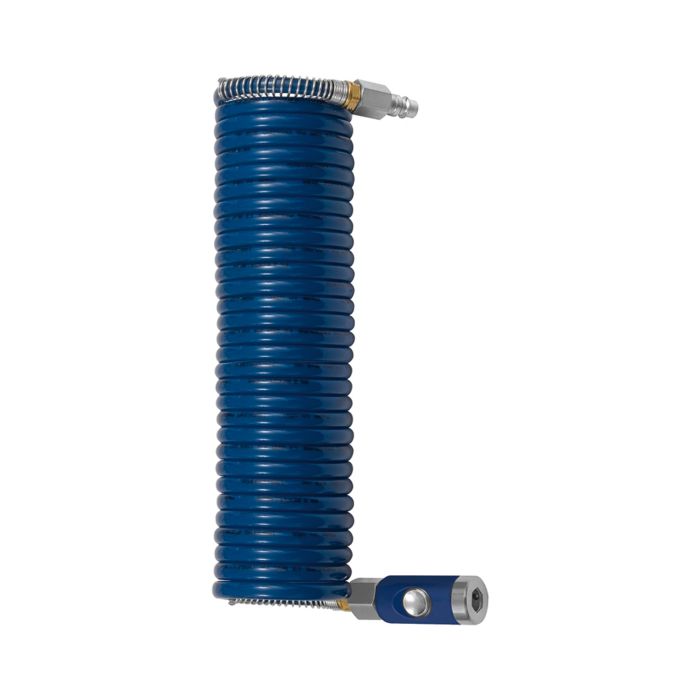

Spiral hose coupling set Safety, Nylon, Hose ø 7.9x6.3, 2.5 m
In stock
SKU
136348
Customer product code
Type Number
SP 8-250DSD
Article name from customer
EAN-Code
4047322504478
Spiral hose coupling set, Safety coupling I.D. 7.4, Nylon 11 PA, Hose ø 7.9x6... More
Productdata
Spiral hose coupling set, Safety coupling I.D. 7.4, Nylon 11 PA, Hose ø 7.9x6.3, PN at 23 °C max. 13 bar, Length 2.5 m
These hoses allow gaseous and liquid media to flow safely and efficiently (Air, gases, oils, greases, fuels, organic and inorganic substances).
Thanks to their small coil diameter, they are compact, easy to handle and lightweight.
Very good recoil force owing to the use of nylon 11 (PA).
Not suitable for direct attachment to pulsating tools.
We recommend using our vibration dampers, according to ISO 6150 § 7.1.
Article No.
136348
Type No.
SP 8-250DSD
Min. operating temperature
-20 °C
Max. operating temperature
70 °C
Max. operating pressure at 23 °C
13 bar
Hose material
nylon
Coil O.D.
75 mm
Tube O.D.
7.9 mm
Tube I.D.
6.3 mm
No. of coils
15
Service length max.
2.5 m
Class name
MAX
Page No.
WEB
Customs tariff number
39173300
Country of origin
US
Downloads
Variants
| Art. No. | Type No. | Attributes | Coil O.D. | Tube O.D. | Tube I.D. | No. of coils | Service length max. | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|---|
| 136354 | SP 10-750DSD | 115 | 9.5 | 7.9 | 30 | 7.5 | ||||
| 136355 | SP 10-1000DSD | 115 | 9.5 | 7.9 | 40 | 10 | ||||
| 136352 | SP 10-250DSD | 115 | 9.5 | 7.9 | 10 | 2.5 | ||||
| 136359 | SP 12-1000DSD | 140 | 11.8 | 9.5 | 30 | 10 | ||||
| 136351 | SP 8-1000DSD | 75 | 7.9 | 6.3 | 60 | 10 | ||||
| 136349 | SP 8-500DSD | 75 | 7.9 | 6.3 | 30 | 5 | ||||
| 136353 | SP 10-500DSD | 115 | 9.5 | 7.9 | 20 | 5 | ||||
| 136358 | SP 12-750DSD | 140 | 11.8 | 9.5 | 23 | 7.5 | ||||
