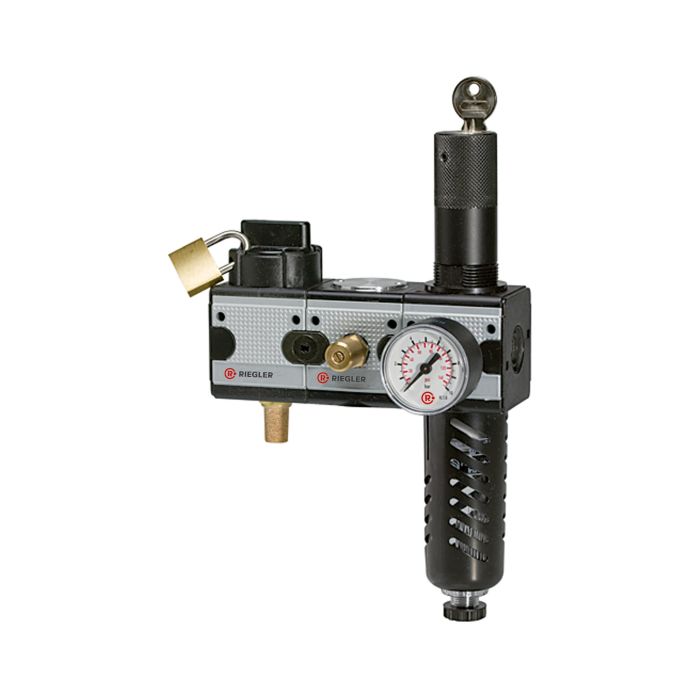

Service station SAFETY »multifix«, Size 5, G 1
(List price: €846.19)
€846.19
List price:
€846.19 / piece
Your price:
€846.19 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
100601
Customer product code
Type Number
WS 2003
Article name from customer
EAN-Code
4047322245630
Service station SAFETY »multifix«, Ball valve - start-up valve - filter regul... More
You can see the exact availability after logging in
List price:
€846.19 / piece
Your price:
€846.19 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata
Service station SAFETY »multifix«, Ball valve - start-up valve - filter regulator, Size 5, G 1, Input pressure 2 - 16 bar
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
Article No.
100601
Type No.
WS 2003
Thread
G 1
Size
5
Min. input pressure
2 bar
Max. input pressure
16 bar
Min. temperature range
-10 °C
Max. temperature range
60 °C
Housing
die-cast zinc
Sealant
NBR
Diaphragms
NBR
air consumption
Yes
Max. internal air consumption
0.5 l/min (depending on secondary pressure)
Min. control range
2 bar
Max. control range
10 bar
Pressure gauge display min.
0 bar
Pressure gauge display max.
16 bar
Filter element
cellpor (PE)
Filter rating
5 µm
Vent port
Silencer (ball valve)
Spring bonnet
POM
Flow rate
12000 l/min
A
410.8 mm
B
282.8 mm
C
157 mm
Medium
compressed air, neutral gases
Flow rate measurement
at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Condensate drain
semi-automatic
Series
multifix
Class name
PLUS
Page No.
HK073
Customs tariff number
84811005
Country of origin
DE
