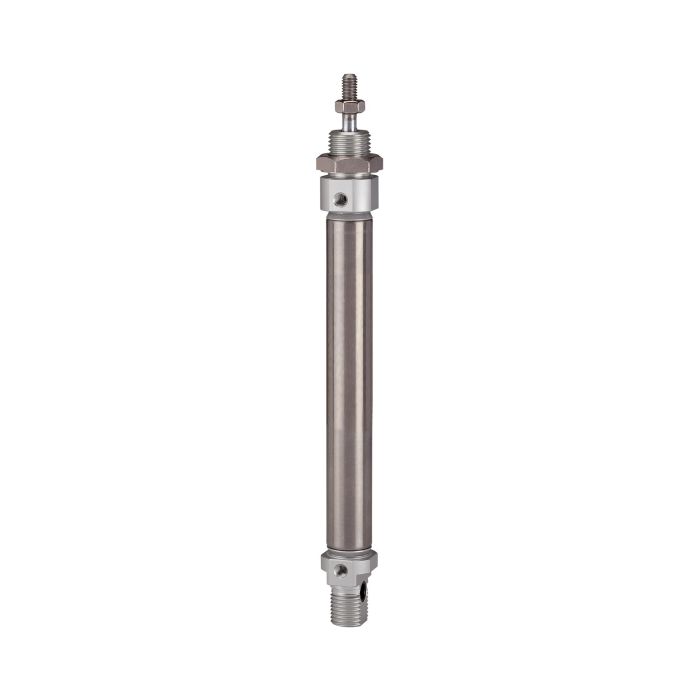

Exemplary illustration

Skip to the beginning of the images gallery

Round cylinder »MI« double-acting, Piston Ø 16, Stroke 25, M5x0.8

(List price: €42.78)

€42.78

(€42.78 / piece)

excl. VAT and shipping

In stock

SKU

114820

Type Number

11.DM.16025

EAN-Code

4047322314091

Round cylinder »MI« ISO 6432, double-acting, Piston Ø 16, Stroke 25, M5x0.8, ... More

Free delivery from 75€ order value*

(€42.78 / piece)

Productdata

Downloads

Variants

accessories

Alternate Articles

Productdata

Round cylinder »MI« ISO 6432, double-acting, Piston Ø 16, Stroke 25, M5x0.8, Working pressure 1 - 10 bar, Temp. -20 °C to 70 °C

These round cylinders are available in the following versions:

- »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432

- »MI« Series, double-acting, Ø 32 to 40

- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40

Suitable for filtered, unlubricated or lubricated compressed air.

If lubrication is used, it must be continuous.

»CA« type = bottom cover with male thread – hinge model»CM« type = bottom cover with male thread, round – hinge model

Article No.

114820

Type No.

11.DM.16025

Min. working pressure

1 bar

Max. working pressure

10 bar

Min. temperature range

-20 °C

Max. temperature range

70 °C

Sealant

NBR

Tube

stainless steel 1.4301

Piston Ø

16 mm

Stroke

25 mm

Connection

M5x0.8

Piston rod

Stainless steel 1.4301

Piston rod ET

M6x1.0

Piston rod-Ø

6 mm

Piston

aluminium

Function

double-acting

Type

CA type

Magnet

with magnet

Standard

acc. to ISO 6432

Cushioning

non-cushioned

Piston rod thread

male piston rod

Series

MI series

Class name

EASY

Page No.

WEB

Customs tariff number

84123100

Country of origin

Downloads

Operating instructions

Datasheet

CAD data

Variants

Art. No.	Type No.	Attributes	Piston Ø	Stroke	Connection	Piston rod	Magnet	Standard	Availability
114841	11.DM.20050	20	50	G 1/8	Stainless steel 1.4301	with magnet	acc. to ISO 6432	You can see the exact availability after logging in	€48.52 List price: €48.52 / piece Your price: €48.52 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€48.52 / piece) excl. VAT and shipping You can see the exact availability after logging in
114833	11.DM.16250	16	250	M5x0.8	Stainless steel 1.4301	with magnet	acc. to ISO 6432	You can see the exact availability after logging in	€56.31 List price: €56.31 / piece Your price: €56.31 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€56.31 / piece) excl. VAT and shipping You can see the exact availability after logging in
114836	11.DM.20015	20	15	G 1/8	Stainless steel 1.4301	with magnet	acc. to ISO 6432	You can see the exact availability after logging in	€46.76 List price: €46.76 / piece Your price: €46.76 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€46.76 / piece) excl. VAT and shipping You can see the exact availability after logging in
114854	11.DM.20400	20	400	G 1/8	Stainless steel 1.4301	with magnet	acc. to ISO 6432	You can see the exact availability after logging in	€88.29 List price: €88.29 / piece Your price: €88.29 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€88.29 / piece) excl. VAT and shipping You can see the exact availability after logging in
114823	11.DM.16050	16	50	M5x0.8	Stainless steel 1.4301	with magnet	acc. to ISO 6432	You can see the exact availability after logging in	€44.96 List price: €44.96 / piece Your price: €44.96 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€44.96 / piece) excl. VAT and shipping You can see the exact availability after logging in
114819	11.DM.16020	16	20	M5x0.8	Stainless steel 1.4301	with magnet	acc. to ISO 6432	You can see the exact availability after logging in	€42.37 List price: €42.37 / piece Your price: €42.37 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€42.37 / piece) excl. VAT and shipping You can see the exact availability after logging in
114815	11.DM.12200	12	200	M5x0.8	Stainless steel 1.4301	with magnet	acc. to ISO 6432	You can see the exact availability after logging in	€51.68 List price: €51.68 / piece Your price: €51.68 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€51.68 / piece) excl. VAT and shipping You can see the exact availability after logging in
114809	11.DM.12080	12	80	M5x0.8	Stainless steel 1.4301	with magnet	acc. to ISO 6432	You can see the exact availability after logging in	€45.38 List price: €45.38 / piece Your price: €45.38 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€45.38 / piece) excl. VAT and shipping You can see the exact availability after logging in
