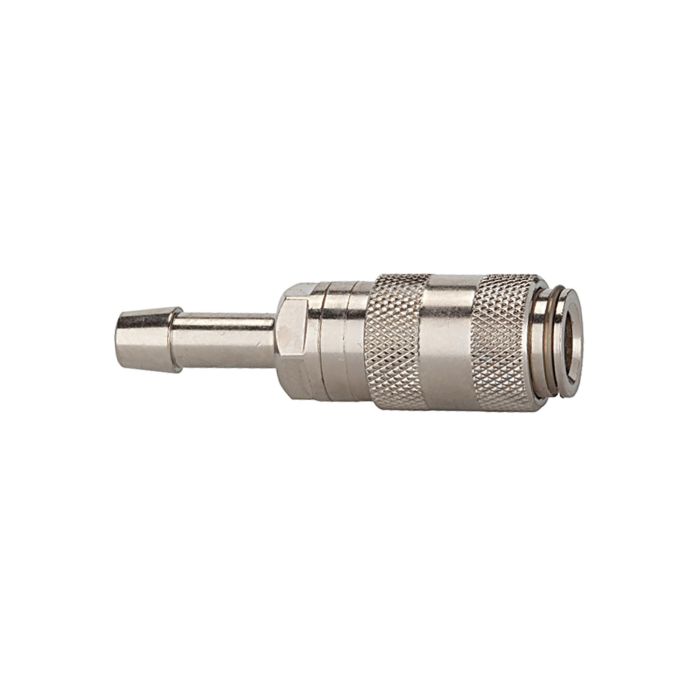

Quick-connect coupling I.D. 2.7, St. steel 1.4404, Sleeve I.D. 3
(List price: €119.16)
€119.16
List price:
€119.16 / piece
Your price:
€119.16 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
107111
Customer product code
Type Number
243.08/5-ES
Article name from customer
EAN-Code
4047322403900
Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Sleeve I.D. 3, Opera... More
You can see the exact availability after logging in
For the sake of the environment: Order this item in increments of 10 to avoid repackaging.List price:
€119.16 / piece
Your price:
€119.16 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata
Quick-connect coupling I.D. 2.7, Stainless steel 1.4404, Sleeve I.D. 3, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C
One-hand quick disconnect couplings, one side sealing, extremely compact with a large bore and only a small pressure drop.
To prevent injuries or a whiplash effect, we recommend that the plug-in nipple is held with one hand during uncoupling.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, offshore.
Article No.
107111
Type No.
243.08/5-ES
Min. operating pressure
0 bar
Max. operating pressure
35 bar
Min. medium temperature
-15 °C
Max. medium temperature
200 °C
Min. ambient temperature
-15 °C
Max. ambient temperature
200 °C
Flow rate (air)
165 l/min
Flow rate measurement
at 6 bar and Δp = 0.5 bar
Housing
stainless steel 1.4404
Sleeve
Stainless steel 1.4404
Valve body
stainless steel 1.4404
Spring
stainless steel 1.4404
Retaining ring
stainless steel 1.4404
Ball
stainless steel 1.4404
Sealant
FKM
Length
35 mm
DN
2.7
for hose I.D.
3 mm
Class name
STAINLESS_STEEL
Page No.
WEB
Customs tariff number
84812090
Country of origin
DE
Downloads
Variants
| Art. No. | Type No. | Attributes | Flow rate (air) | Length | for hose I.D. | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|
| 107112 | 243.08/6-ES | 165 | 35 | 4 | You can see the exact availability after logging in | €142.93 List price: €142.93 / piece Your price: €142.93 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
