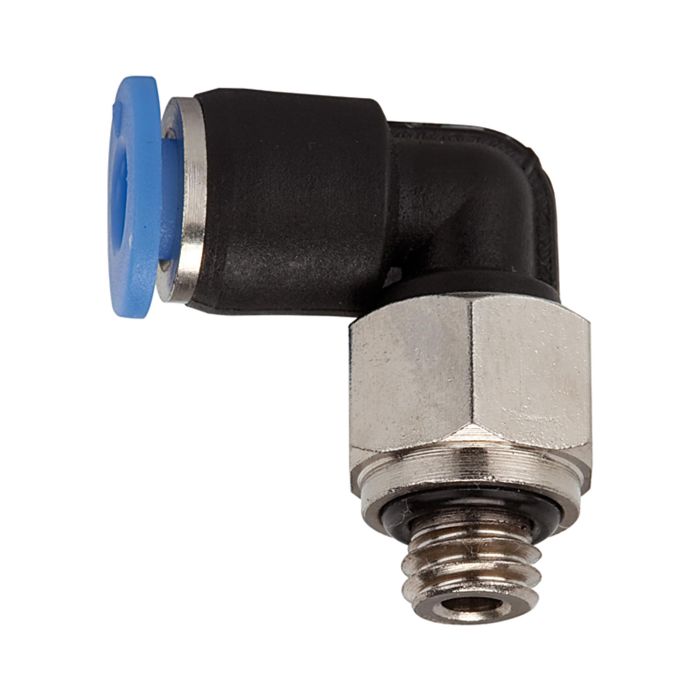

Push-in L-fitting »Blue Series« mini, rotating, M3
In stock
SKU
109029
Customer product code
Type Number
PL-34
Article name from customer
EAN-Code
4047322266031
Push-in L-fitting »Blue Series« mini, rotating, M3, for hose exterior Ø 4 mm,... More
Productdata
Push-in L-fitting »Blue Series« mini, rotating, M3, for hose exterior Ø 4 mm, pmax 10 bar
Push-in fittings series manufactured in plastic and nickel-plated brass.
Space-saving miniature design.
Article No.
109029
Type No.
PL-34
Min. working pressure
-0.95 bar
Max. working pressure
10 bar
Max. temperature range
60 °C
Min. temperature range
0 °C
Material
plastic and nickel-plated brass
Sealant
NBR
Medium
compressed air
Recommended hose/tube material
PA, PU
Applications
compressed air systems, automotive,packaging industry,vacuum
Sleeve
plastic
Thread
M3 ET
for tube O.D.
4 mm
L1
14 mm
L2
17.2 mm
a/f
8 mm
Standard thread
DIN 13-1
detailed product information
Series
Blue series mini
Class name
EASY
Page No.
WEB
Customs tariff number
39174000
Country of origin
CN
Downloads
Variants
| Art. No. | Type No. | Attributes | Thread | for tube O.D. | a/f | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|
| 109040 | PLR-184 | R 1/8 ET | 4 | 10 | ||||
| 109032 | PL-56 | M5 ET | 6 | 8 | ||||
| 109039 | PLG-186 | G 1/8 ET | 6 | 13 | ||||
| 109030 | PL-53 | M5 ET | 3 | 8 | ||||
| 109033 | PL-63 | M6 ET | 3 | 10 | ||||
| 109036 | PL-74 | M7 ET | 4 | 10 | You can see the exact availability after logging in | €3.31 List price: €3.31 / piece Your price: €3.31 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 109041 | PLR-186 | R 1/8 ET | 6 | 10 | ||||
| 109031 | PL-54 | M5 ET | 4 | 8 | ||||
