Push-in bulkhead connector »Blue series« mini, M12x1
In stock
SKU
109085
Customer product code
Type Number
PS-123
Article name from customer
EAN-Code
4047322385534
Push-in bulkhead connector »Blue series« mini, M12x1, for hose exterior Ø 6 m... More
Productdata

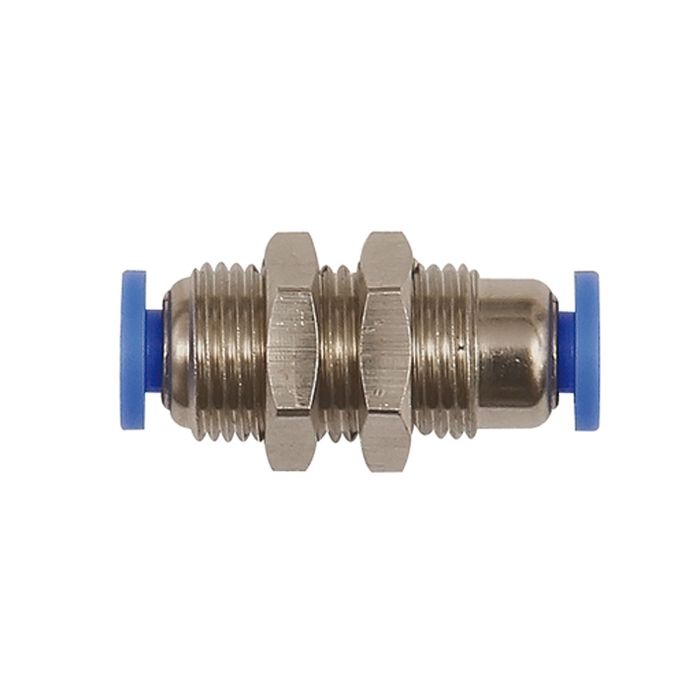

Push-in bulkhead connector »Blue series« mini, M12x1, for hose exterior Ø 6 mm, pmax 10 bar
Push-in fittings series manufactured in plastic and nickel-plated brass.
Space-saving miniature design.
Article No.
109085
Type No.
PS-123
Min. working pressure
-0.95 bar
Max. working pressure
10 bar
Max. temperature range
60 °C
Min. temperature range
0 °C
Material
plastic and nickel-plated brass
Sealant
NBR
Medium
compressed air
Recommended hose/tube material
PA, PU
Applications
compressed air systems, automotive,packaging industry,vacuum
Sleeve
plastic
for tube O.D.
6 mm
L1
23.8 mm
a/f
14 mm
Thread for panel mounting
M12x1.0 ET
detailed product information
Series
Blue series mini
Class name
EASY
Page No.
WEB
Customs tariff number
39174000
Country of origin
CN
