Pressure regulator »multifix«, Size 4, G 1, 0.2 - 6 bar
(List price: €155.59)
€155.59
List price:
€155.59 / piece
Your price:
€155.59 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
133102
Customer product code
Type Number
R 45 - 6
Article name from customer
EAN-Code
4047322475907
Pressure regulator »multifix«, incl. pressure gauge, Size 4, G 1, Input press... More
You can see the exact availability after logging in
List price:
€155.59 / piece
Your price:
€155.59 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata

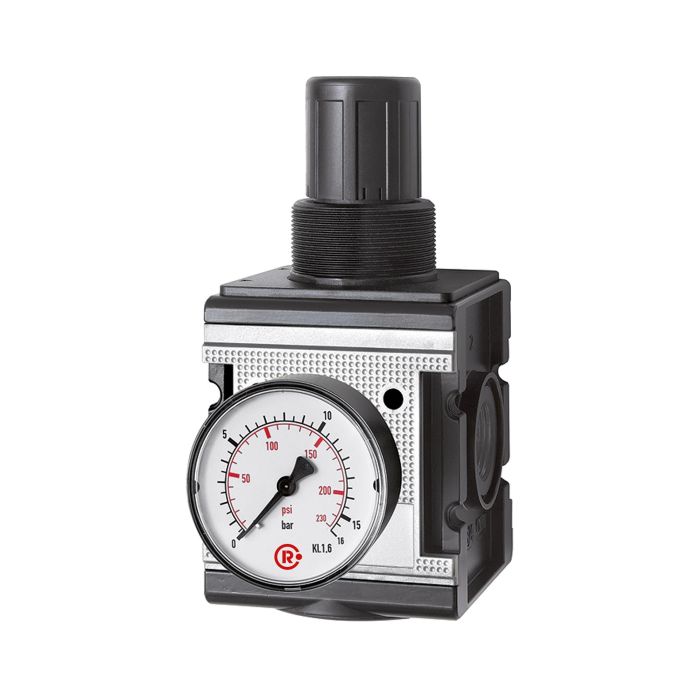

Pressure regulator »multifix«, incl. pressure gauge, Size 4, G 1, Input pressure max. 16 bar, Control range 0.2 - 6 bar
Reversible diaphragm pressure regulators, independent of inlet pressure, with self-relieving design.
The pressure setting can be locked by pushing the button down.
Article No.
133102
Type No.
R 45 - 6
Thread
G 1
Size
4
Max. input pressure
16 bar
Sealant
NBR
Min. medium temperature
-10 °C
Max. medium temperature
60 °C
Min. ambient temperature
-10 °C
Max. ambient temperature
60 °C
Spring bonnet
POM/brass
Flow rate
12000 l/min
Min. control range
0.2 bar
Max. control range
6 bar
Pressure gauge display min.
0 bar
Pressure gauge display max.
10 bar
DN
25 mm
A
85 mm
B
178 mm
C
125 mm
D
53 mm
Housing
die-cast aluminium
Flow rate measurement
at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar
air consumption
Yes
Max. internal air consumption
1.5 l/min (depending on secondary pressure)
Medium
compressed air, neutral gases
Series
multifix
Class name
PLUS
Page No.
HK056
Customs tariff number
84811099
Country of origin
DE
Downloads
Variants
| Art. No. | Type No. | Attributes | Thread | Size | Flow rate | Min. control range | Max. control range | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|---|
| 100426 | R 33 - 16 | G 1/2 | 3 | 8,700 | 0.5 | 16 | You can see the exact availability after logging in | €75.21 List price: €75.21 / piece Your price: €75.21 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 100415 | R 11 - 3 | G 1/4 | 1 | 2,100 | 0.1 | 3 | You can see the exact availability after logging in | €50.34 List price: €50.34 / piece Your price: €50.34 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 100419 | R 12 - 3 | G 3/8 | 1 | 2,100 | 0.1 | 3 | You can see the exact availability after logging in | €50.34 List price: €50.34 / piece Your price: €50.34 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 100418 | R 11 - 16 | G 1/4 | 1 | 2,100 | 0.5 | 16 | You can see the exact availability after logging in | €50.34 List price: €50.34 / piece Your price: €50.34 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 100423 | R 33 - 3 | G 1/2 | 3 | 8,700 | 0.1 | 3 | You can see the exact availability after logging in | €75.21 List price: €75.21 / piece Your price: €75.21 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 100416 | R 11 - 6 | G 1/4 | 1 | 2,100 | 0.2 | 6 | You can see the exact availability after logging in | €50.34 List price: €50.34 / piece Your price: €50.34 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 100425 | R 33 - 10 | G 1/2 | 3 | 8,700 | 0.5 | 10 | You can see the exact availability after logging in | €75.21 List price: €75.21 / piece Your price: €75.21 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 100420 | R 12 - 6 | G 3/8 | 1 | 2,100 | 0.2 | 6 | You can see the exact availability after logging in | €50.34 List price: €50.34 / piece Your price: €50.34 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
