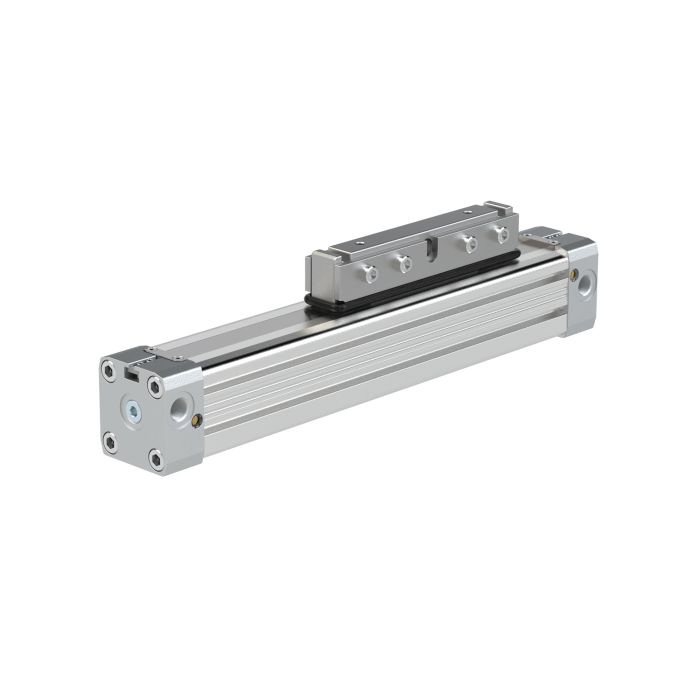

Piston rod-free cylinder ZRL1C, Ø 16, Stroke 100, Standard

(List price: €334.41)

€334.41

(€334.41 / piece)

excl. VAT and shipping

In stock

SKU

129680

Type Number

ZRL1C.160100

EAN-Code

4047322734868

Piston rod-free cylinder ZRL1C, Ø 16, Stroke 100, Standard, Working pressure ... More

Free delivery from 75€ order value*

(€334.41 / piece)

Productdata

Downloads

Variants

accessories

Productdata

Piston rod-free cylinder ZRL1C, Ø 16, Stroke 100, Standard, Working pressure 0,5 - 8 bar, Temp. -10 to 80 °C

ZRL1C series actuators include piston diameters of 16, 25, 32 and 40 mm with stroke lengths up to 5700 mm. Suitable for filtered (50 µm) and unlubricated or lubricated compressed air. Please ensure continuous oiling when using lubricated compressed air.

Please refer to our type code in the data-sheet for the available variants and their corresponding type designations for your individual inquiry.

Other special designs are also available on request.

After receipt of order, the cylinders will be manufactured individually for you.

Usually, shipment takes place within 5 working days, depending on the number of pieces.

Freight and packaging costs are charged individually and regardless of the value of the goods.

Article No.

129680

Type No.

ZRL1C.160100

Min. working pressure

0.5 bar

Max. working pressure

8 bar

Min. temperature range

-10 °C

Max. temperature range

80 °C

Sealant

oil-proof synthetic material (NBR)

Sealing bands

stainless steel

Piston Ø

16 mm

Stroke

100 mm

Connection

Function

double-acting

Piston caps and sliding parts

abrasion-resistant plastic

Medium

filtered air (max. 50 µm)

Mounting position

any

Air connection

3-fold on both sides

Screws

steel 10.9 zinc plated

Load connection

rigid

Magnet

with magnet

Cushioning

cushioned

Series

ZRL1C series

Class name

PLUS

Page No.

HK404

Customs tariff number

84123100

Country of origin

Downloads

Operating instructions

Datasheet

CAD data

Variants

Art. No.	Type No.	Attributes	Piston Ø	Stroke	Connection	Magnet	Availability
150742	ZRL1C.401300	40	1,300	G 1/4	with magnet	You can see the exact availability after logging in	€887.93 List price: €887.93 / piece Your price: €887.93 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€887.93 / piece) excl. VAT and shipping You can see the exact availability after logging in
147199	ZRL1C.251500	25	1,500	G 1/8	with magnet	You can see the exact availability after logging in	€545.71 List price: €545.71 / piece Your price: €545.71 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€545.71 / piece) excl. VAT and shipping You can see the exact availability after logging in
129859	ZRL1C.401600	40	1,600	G 1/4	with magnet	You can see the exact availability after logging in	€948.14 List price: €948.14 / piece Your price: €948.14 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€948.14 / piece) excl. VAT and shipping You can see the exact availability after logging in
145465	ZRL1C.251000.F	25	1,000	G 1/8	with magnet	You can see the exact availability after logging in	€521.49 List price: €521.49 / piece Your price: €521.49 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€521.49 / piece) excl. VAT and shipping You can see the exact availability after logging in
145969	ZRL1C.321700.KBW	32	1,700	G 1/4	with magnet	You can see the exact availability after logging in	€814.80 List price: €814.80 / piece Your price: €814.80 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€814.80 / piece) excl. VAT and shipping You can see the exact availability after logging in
145735	ZRL1C.251860.F	25	1,860	G 1/8	with magnet	You can see the exact availability after logging in	€627.12 List price: €627.12 / piece Your price: €627.12 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€627.12 / piece) excl. VAT and shipping You can see the exact availability after logging in
129682	ZRL1C.320100	32	100	G 1/4	with magnet	You can see the exact availability after logging in	€503.46 List price: €503.46 / piece Your price: €503.46 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€503.46 / piece) excl. VAT and shipping You can see the exact availability after logging in
130867	ZRL1C.160650	16	650	M5	with magnet	You can see the exact availability after logging in	€417.46 List price: €417.46 / piece Your price: €417.46 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€417.46 / piece) excl. VAT and shipping You can see the exact availability after logging in
