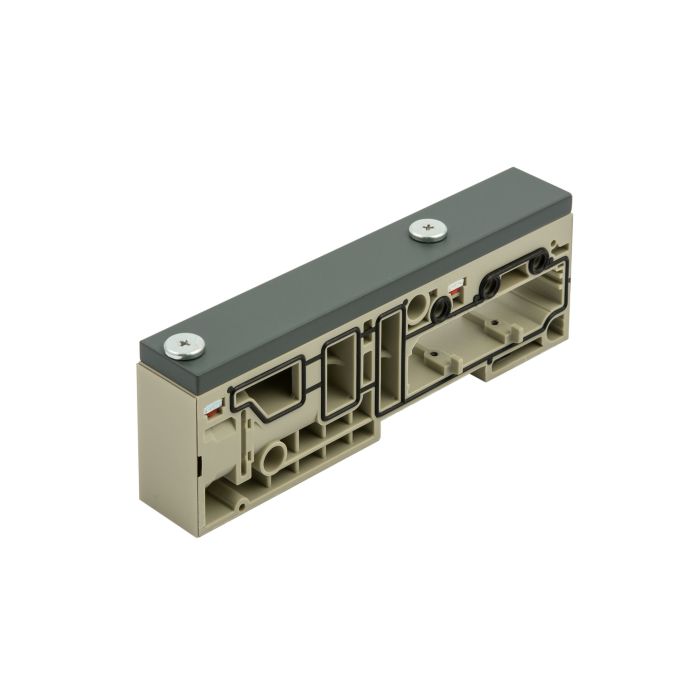

Module for valve island EB 80 without pneumatic parts
(List price: €40.21)
€40.21
List price:
€40.21 / piece
Your price:
€40.21 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
151081
Customer product code
Type Number
02282P91Z90
Article name from customer
EAN-Code
4047322815253
Module for valve island EB 80 without pneumatic parts
The EB 80 modules... More
You can see the exact availability after logging in
List price:
€40.21 / piece
Your price:
€40.21 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata
Module for valve island EB 80 without pneumatic parts
The EB 80 modules “Compressed Air Supply – P” power the valve base and collect exhaust air from the relief ports. They are available in various versions with different pipe fitting diameters.
Pilot air can either be internal or external (recommended). Switching between internal and external pilot air modes is possible by repositioning the orange gasket located between the upper and lower parts of the module. The configuration is indicated by a tab at the rear of the module.
Relief ports 3 and 5 can either be connected with a silencer or push-in fitting.
A version with separate ports 3 and 5 is also available. This is particularly useful in configurations with external pilot air, allowing the valves to be supplied with different pressures (from vacuum up to 8 bar).
A module version without pneumatic connections is also available, specifically designed for configuring a fieldbus island with signal modules only – without any pneumatic section.
Article No.
151081
Type No.
02282P91Z90
Sealant
NBR
Protection IP
IP 65
Version
for EB 80 without pneumatic parts
Min. ambient temperature
-10 °C
Max. ambient temperature
50 °C
Housing
technopolymer
Module type
P
Module description
compressed air supply
Port 1
without
detailed product information
Series
EB 80
Manufacturer Art. No.
02282P91Z90
Manufacturer/brand
Metal Work
Class name
MAX
Page No.
WEB
Customs tariff number
84818099
Country of origin
IT
Downloads
Variants
| Art. No. | Type No. | Attributes | Version | Module type | Module description | Port 1 | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|
| 151064 | 02282P2XZ00 | with silenced relief | P | compressed air supply | Ø 10 mm | You can see the exact availability after logging in | €40.21 List price: €40.21 / piece Your price: €40.21 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 151068 | 02282P31Z00 | with silenced relief | P | compressed air supply | Ø 12 mm | You can see the exact availability after logging in | €40.21 List price: €40.21 / piece Your price: €40.21 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 151079 | 02282P21Z60 | with separate relief | P | compressed air supply | Ø 10 mm | You can see the exact availability after logging in | €40.21 List price: €40.21 / piece Your price: €40.21 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 151076 | 02282P2XZ60 | with separate relief | P | compressed air supply | Ø 10 mm | You can see the exact availability after logging in | €40.21 List price: €40.21 / piece Your price: €40.21 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 151067 | 02282P21Z00 | with silenced relief | P | compressed air supply | Ø 10 mm | You can see the exact availability after logging in | €40.21 List price: €40.21 / piece Your price: €40.21 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 151069 | 02282P1XZ10 | with conveyed relief | P | compressed air supply | Ø 8 mm | You can see the exact availability after logging in | €40.21 List price: €40.21 / piece Your price: €40.21 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 151071 | 02282P3XZ30 | with conveyed relief | P | compressed air supply | Ø 12 mm | You can see the exact availability after logging in | €40.21 List price: €40.21 / piece Your price: €40.21 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 151072 | 02282P11Z10 | with conveyed relief | P | compressed air supply | Ø 8 mm | You can see the exact availability after logging in | €40.21 List price: €40.21 / piece Your price: €40.21 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
