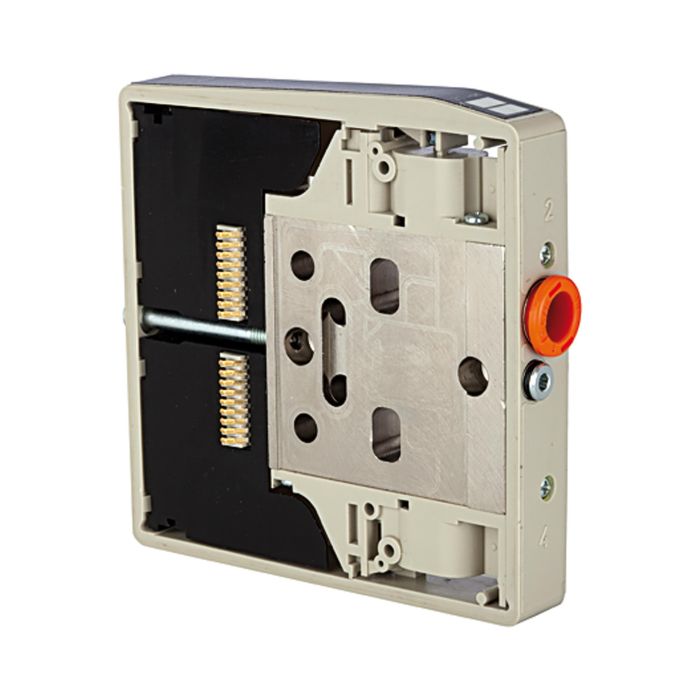

Intermediate plate for valve terminal HDM, separated air intake
(List price: €73.53)
€73.53
List price:
€73.53 / piece
Your price:
€73.53 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
106696
Customer product code
Type Number
7
Article name from customer
EAN-Code
4047322286794
Intermediate plate for valve terminal HDM with separated air intake (for mult... More
You can see the exact availability after logging in
List price:
€73.53 / piece
Your price:
€73.53 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata
Intermediate plate for valve terminal HDM with separated air intake (for multi-pressure systems, 2+4 are separately pressurised)
These compact valve terminals, with a maximum flow rate of 800 Nl/min, can be individually adapted to the specific conditions of each application thanks tot he wide range of functions and various input and intermediate plates.
Since each valve terminal is a customer-specific combination of a series of individual elements, the catalogue only lists the available input, intermediate and end plates as well as the different valve discs and the 25-pin multi-pole connectors.
Suitable for filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.
Bistable (latching) version of manual control also available on request.
The operating pressure is based on the installed input plates.
Article No.
106696
Type No.
7
Module description
intermediate plate
Version
with separated air intake (2+4 are separately pressurised)
Min. temperature range
-10 °C
Max. temperature range
60 °C
Power input
0.6 W per pilot
Piloting
max. 16 (e.g. 16 spring return valves)
Protection IP
IP 65
Material
aluminium
Series
HDM
Manufacturer Art. No.
0227301302
Manufacturer/brand
Metal Work
Class name
MAX
Page No.
HK436
Customs tariff number
84818099
Country of origin
IT
Downloads
Variants
| Art. No. | Type No. | Attributes | Version | Availability | Price | Options |
|---|---|---|---|---|---|---|
| 106695 | 6 | with additional supply and exhaust air | You can see the exact availability after logging in | €77.73 List price: €77.73 / piece Your price: €77.73 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 106697 | 20 | with separated exhaust (2+4 are separately exhausted) | You can see the exact availability after logging in | €67.50 List price: €67.50 / piece Your price: €67.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
