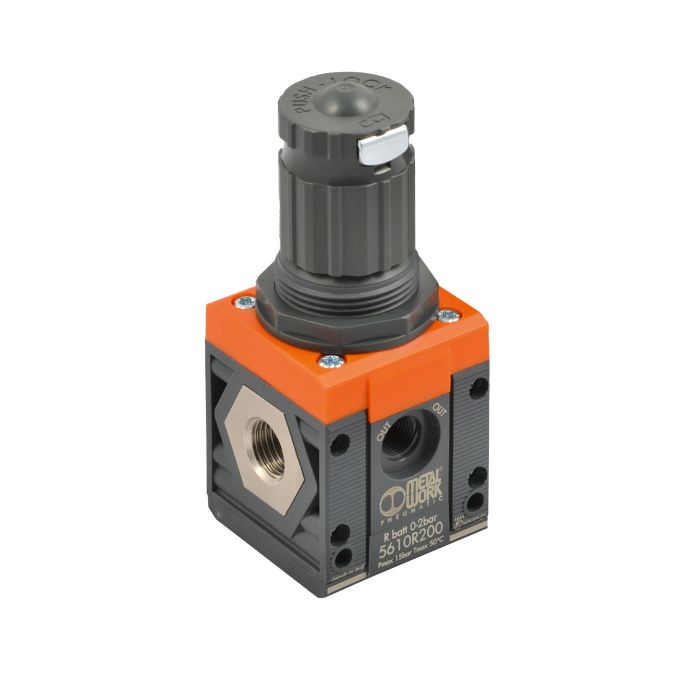

In-series regulator »SYNTESI«, size 1, w/o bush., 0…2 bar

(List price: €35.96)

€35.96

(€35.96 / piece)

excl. VAT and shipping

In stock

SKU

139833

Type Number

5610R200

EAN-Code

4047322754712

In-series regulator »SYNTESI«, size 1, w/o bushings, p1 = max. 15 bar, p2 = 0... More

Free delivery from 75€ order value*

(€35.96 / piece)

Productdata

Downloads

Variants

accessories

Spareparts

Productdata

In-series regulator »SYNTESI«, size 1, w/o bushings, p1 = max. 15 bar, p2 = 0 … 2 bar, T = -10 … 50 °C, w/o pressure gauge

In-series regulators are used to take the regulated air from the front and rear ports, while the pneumatic inlet and outlet ports are connected directly. It is possible for instance to assemble several regulators side by side, all supplied at the same pressure, and obtain different regulated pressures, regardless of the pressure of the previous module. The in-series regulators use the same construction principles as the standard »SYNTESI« series regulator, so the advantages are the same, such as compensation for upstream pressure changes, relief valve, rapid relief of the downstream pressure and push-lock type adjustment knobs which can be additionally secured with padlocks.

Pressure gauge not included in delivery!

ATEX version on request!

Article No.

139833

Type No.

5610R200

Size

Max. input pressure

15 bar

Min. temperature range

-10 °C

Max. temperature range

50 °C

Housing

technopolymer

Sealant

NBR

Diaphragms

NBR 60 Shore (hardness) with polyester fabric insert

Min. control range

0 bar

Max. control range

2 bar

Spring bonnet

technopolymer

Input

without socket

Output

without socket

Front and back port thread

G 1/8

Flow rate measurement 1

at P₁ = 10 bar, P₂ = 6.3 bar and pressure drop Δ_p = 0.5 bar

Flow rate measurement 2

at P₁ = 10 bar, P₂ = 6.3 bar and pressure drop Δ_p = 1 bar

Flow rate 1

330 Nl/min

Flow rate 2

500 Nl/min

- mm

42 mm

102 mm

51.5 mm

Medium

compressed air, neutral gases

detailed product information

https://www.riegler.de/de/de/wartungsgeraete_syntesi

Series

SYNTESI

Manufacturer Art. No.

5610R200

Manufacturer/brand

Metal Work

Class name

PLUS

Page No.

WEB

Customs tariff number

84811099

Country of origin

Downloads

Operating instructions

Datasheet

CAD data

Variants

Art. No.	Type No.	Attributes	Min. control range	Max. control range	Input	Output	Availability
139844	5611R201	1	2	G 1/8	G 1/8	You can see the exact availability after logging in	€38.54 List price: €38.54 / piece Your price: €38.54 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€38.54 / piece) excl. VAT and shipping You can see the exact availability after logging in
139929	5612R202	1	2	G 1/4	G 1/4	You can see the exact availability after logging in	€38.55 List price: €38.55 / piece Your price: €38.55 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€38.55 / piece) excl. VAT and shipping You can see the exact availability after logging in
139995	5613R203	1	2	G 3/8	G 3/8	You can see the exact availability after logging in	€38.55 List price: €38.55 / piece Your price: €38.55 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€38.55 / piece) excl. VAT and shipping You can see the exact availability after logging in
139946	5612R222	1	4	G 1/4	G 1/4	You can see the exact availability after logging in	€38.55 List price: €38.55 / piece Your price: €38.55 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€38.55 / piece) excl. VAT and shipping You can see the exact availability after logging in
140000	5613R223	1	4	G 3/8	G 3/8	You can see the exact availability after logging in	€38.55 List price: €38.55 / piece Your price: €38.55 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€38.55 / piece) excl. VAT and shipping You can see the exact availability after logging in
139879	5611R241	1	8	G 1/8	G 1/8	You can see the exact availability after logging in	€38.55 List price: €38.55 / piece Your price: €38.55 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€38.55 / piece) excl. VAT and shipping You can see the exact availability after logging in
139968	5612R242	1	8	G 1/4	G 1/4	You can see the exact availability after logging in	€38.55 List price: €38.55 / piece Your price: €38.55 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€38.55 / piece) excl. VAT and shipping You can see the exact availability after logging in
139836	5610R260	1	12	without socket	without socket	You can see the exact availability after logging in	€35.96 List price: €35.96 / piece Your price: €35.96 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€35.96 / piece) excl. VAT and shipping You can see the exact availability after logging in
