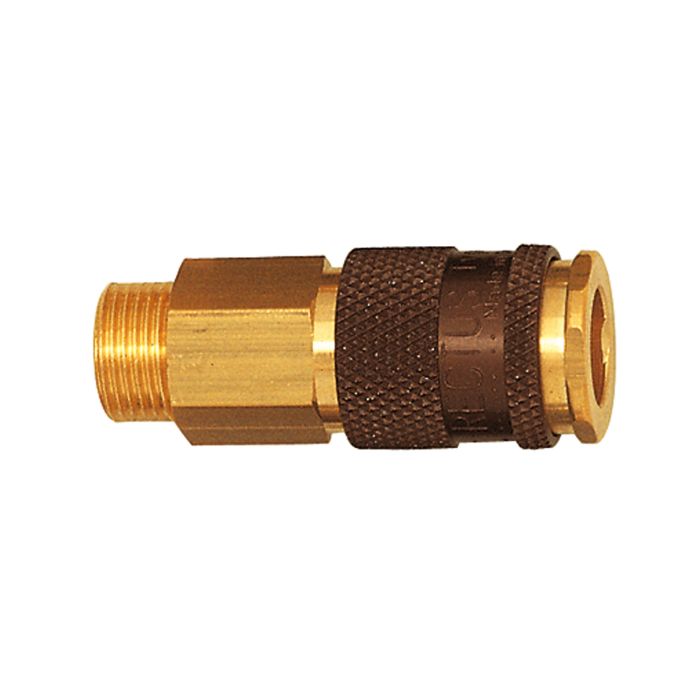

Captive quick-connect coupling I.D. 7.8, G 1/4 ET, brown
In stock
SKU
107665
Customer product code
Type Number
248.11
Article name from customer
EAN-Code
4047322062084
Captive quick-connect coupling I.D. 7.8, Bright brass, G 1/4 ET, brown, max. ... More
For the sake of the environment: Order this item in increments of 10 to avoid repackaging.Productdata
Captive quick-connect coupling I.D. 7.8, Bright brass, G 1/4 ET, brown, max. 35 bar, Medium/ambient temp. -20°C to 100°C
One-hand quick disconnect couplings with a large bore.
Different media can be connected safely and non-interchangeably even when space is restricted, thanks to the colour-coded coupling and plug and the different coupling profiles defined for each of the four colours. Only couplings and plugs of the same colour fit together.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
Article No.
107665
Type No.
248.11
DN
7.8
Connection
G 1/4 ET
Colour
brown
a/f
19 mm
Length
57.5 mm
Min. ambient temperature
-20 °C
Max. ambient temperature
100 °C
Min. medium temperature
-20 °C
Max. medium temperature
100 °C
Housing
bright brass
Sealant
NBR
Flow rate measurement
at 6 bar and Δp = 0.5 bar
Ball
rustproof steel
Spring
stainless steel
Retaining ring
rustproof steel
Unlocking sleeve
Anodised aluminium
Valve
Die-cast zinc, nickel-plated
Min. operating pressure
0 bar
Max. operating pressure
35 bar
Flow rate (air)
1800 l/min
Class name
PLUS
Page No.
HK549
Customs tariff number
84818079
Country of origin
DE
Downloads
Variants
| Art. No. | Type No. | Attributes | Connection | Colour | a/f | Length | Flow rate (air) | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|---|
| 107669 | 248.21 | G 1/4 ET | blue | 19 | 57.5 | 1,800 | ||||
| 107674 | 248.32 | G 3/8 ET | red | 19 | 57.5 | 1,800 | ||||
| 107666 | 248.12 | G 3/8 ET | brown | 19 | 57.5 | 1,800 | ||||
| 107661 | 248.01 | G 1/4 ET | green | 19 | 57.5 | 1,800 | ||||
| 107673 | 248.31 | G 1/4 ET | red | 19 | 57.5 | 1,800 | ||||
| 107670 | 248.22 | G 3/8 ET | blue | 19 | 57.5 | 1,800 | ||||
| 107662 | 248.02 | G 3/8 ET | green | 19 | 57.5 | 1,800 | ||||
