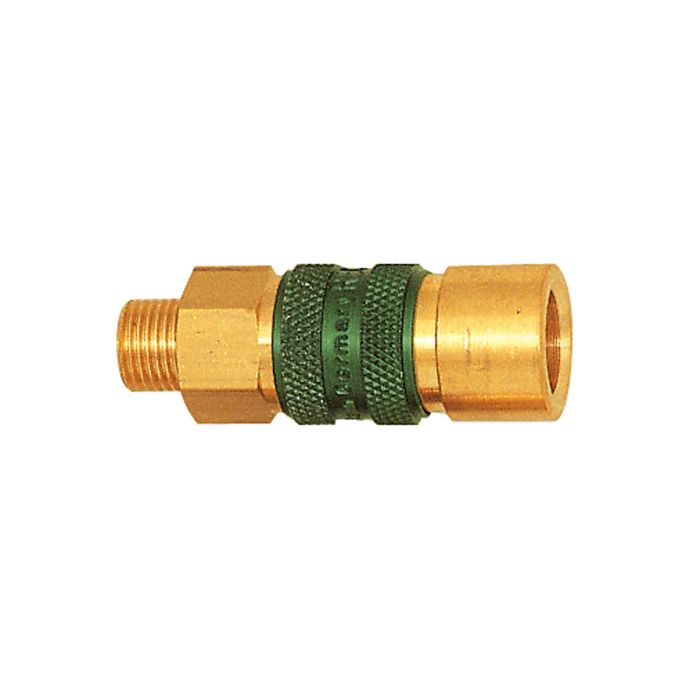

Captive quick-connect coupling I.D. 5, G 1/8 ET, green
In stock
SKU
107625
Customer product code
Type Number
247.01
Article name from customer
EAN-Code
4047322061575
Captive quick-connect coupling I.D. 5, Bright brass, G 1/8 ET, green, max. 35... More
For the sake of the environment: Order this item in increments of 10 to avoid repackaging.Productdata
Captive quick-connect coupling I.D. 5, Bright brass, G 1/8 ET, green, max. 35 bar, Medium / ambient temp. -20°C to 100°C
One-hand quick disconnect couplings with a large bore.
Different media can be connected safely and non-interchangeably even when space is restricted, thanks to the colour-coded coupling and plug and the different coupling profiles defined for each of the four colours.
Only couplings and plugs of the same colour fit together.
Areas of application: Pneumatic system, machine and plant engineering, measurement, monitoring and control systems, manufacturing industry, medical technology, chemical / pharmaceutical industry, automotive, food technology, aerospace.
Article No.
107625
Type No.
247.01
DN
5
Connection
G 1/8 ET
Colour
green
a/f
14 mm
Length
45 mm
Min. ambient temperature
-20 °C
Max. ambient temperature
100 °C
Min. medium temperature
-20 °C
Max. medium temperature
100 °C
Housing
bright brass
Sealant
NBR
Flow rate measurement
at 6 bar and Δp = 0.5 bar
Ball
rustproof steel
Spring
stainless steel
Retaining ring
rustproof steel
Unlocking sleeve
Anodised aluminium
Valve
Brass with a bare metal surface
Min. operating pressure
0 bar
Max. operating pressure
35 bar
Flow rate (air)
560 l/min
Class name
PLUS
Page No.
HK547
Customs tariff number
84818079
Country of origin
DE
Downloads
Variants
| Art. No. | Type No. | Attributes | Connection | Colour | a/f | Length | Flow rate (air) | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|---|
| 107637 | 247.31 | G 1/8 ET | red | 14 | 45 | 560 | ||||
| 107629 | 247.11 | G 1/8 ET | brown | 14 | 45 | 560 | ||||
| 107633 | 247.21 | G 1/8 ET | blue | 14 | 45 | 560 | ||||
| 107626 | 247.02 | G 1/4 ET | green | 17 | 47 | 560 | ||||
| 107630 | 247.12 | G 1/4 ET | brown | 17 | 47 | 560 | ||||
| 107634 | 247.22 | G 1/4 ET | blue | 17 | 47 | 560 | ||||
| 107638 | 247.32 | G 1/4 ET | red | 17 | 47 | 560 | ||||
