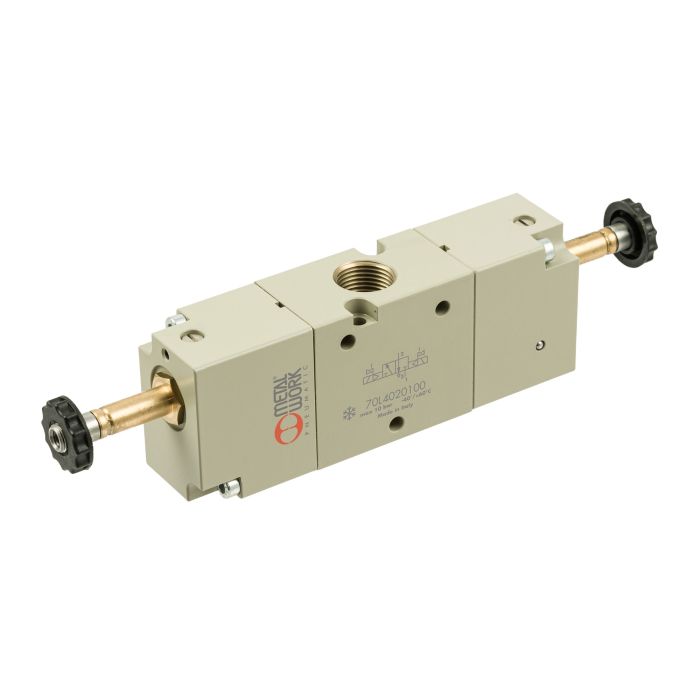

3/2-way valve low temperature, electropneumatic, bistable, G 3/8

(List price: €229.44)

€229.44

(€229.44 / piece)

excl. VAT and shipping

In stock

SKU

149938

Type Number

70L4020100

EAN-Code

4047322807234

3/2-way valve low temperature, electropneumatic, bistable, G 3/8, pmax 10 bar... More

Free delivery from 75€ order value*

(€229.44 / piece)

Productdata

Downloads

Variants

accessories

Productdata

3/2-way valve low temperature, electropneumatic, bistable, G 3/8, pmax 10 bar, T = -40 … 60 °C, alum., without connector/coil

The series 70 low temperature valves in electropneumatic version complement our range of traditional way valves of series 70. They represent a selection of the most commonly used electropneumatic way valves, which are manufactured with components for special low temperature applications. These valves have a wide range of applications as bushing valves, direct mounting on the cylinder with special adapters or as series valves with multi-base plates and individual interlinking plates (supply strips).

Article No.

149938

Type No.

70L4020100

Operation

electropneumatic

Function

3/2 bistable

Connection

G 3/8 IT

Voltage

without voltage

Pilot air supply

internal

Control air port

Scope of delivery

without connector and coil

13.3 mm

Flow rate measurement 1

flow rate at 6 bar and Δ_p 1 bar

Flow rate 1

2150 Nl/min

Flow rate measurement 2

flow rate at 6 bar and Δ_p 0.5 bar

Flow rate 2

1560 Nl/min

Medium

filtered, dry and unlubricated compressed air

Required purity class in accordance w. ISO 8573-1

4.2.3

Min. operating pressure at -40 to -10 °C

5 bar

Min. operating pressure at -10 to 60 °C

3 bar

Max. operating pressure

10 bar

Min. medium temperature

-40 °C

Max. medium temperature

60 °C

Min. ambient temperature

-40 °C

Max. ambient temperature

60 °C

Valve body

aluminium

Piston

nickel-plated aluminium

Sealant

NBR

Spring

special steel

Manual control

latching

Description

3/2-way valve low temp., electropneumatic, bistable, G 3/8

Series

series 70 low temperature

Manufacturer Art. No.

70L4020100

Manufacturer/brand

Metal Work

Class name

PLUS

Page No.

WEB

Customs tariff number

84818079

Country of origin

Downloads

Datasheet

Request CAD Model
