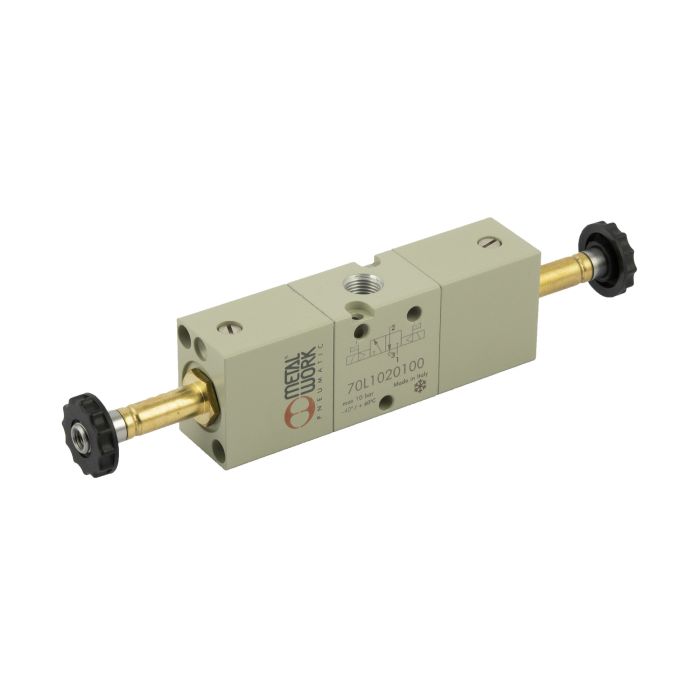

3/2-way valve low temperature, electropneumatic, bistable, G 1/8
(List price: €146.69)
€146.69
List price:
€146.69 / piece
Your price:
€146.69 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
149936
Customer product code
Type Number
70L1020100
Article name from customer
EAN-Code
4047322807210
3/2-way valve low temperature, electropneumatic, bistable, G 1/8, pmax 10 bar... More
You can see the exact availability after logging in
List price:
€146.69 / piece
Your price:
€146.69 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata
3/2-way valve low temperature, electropneumatic, bistable, G 1/8, pmax 10 bar, T = -40 … 60 °C, alum., without connector/coil
The series 70 low temperature valves in electropneumatic version complement our range of traditional way valves of series 70. They represent a selection of the most commonly used electropneumatic way valves, which are manufactured with components for special low temperature applications. These valves have a wide range of applications as bushing valves, direct mounting on the cylinder with special adapters or as series valves with multi-base plates and individual interlinking plates (supply strips).
Article No.
149936
Type No.
70L1020100
Operation
electropneumatic
Function
3/2 bistable
Connection
G 1/8 IT
Voltage
without voltage
Pilot air supply
internal
Control air port
-
Scope of delivery
without connector and coil
DN
5 mm
Flow rate measurement 1
flow rate at 6 bar and Δp 1 bar
Flow rate 1
550 Nl/min
Flow rate measurement 2
flow rate at 6 bar and Δp 0.5 bar
Flow rate 2
400 Nl/min
Medium
filtered, dry and unlubricated compressed air
Required purity class in accordance w. ISO 8573-1
4.2.3
Min. operating pressure at -40 to -10 °C
5 bar
Min. operating pressure at -10 to 60 °C
3 bar
Max. operating pressure
10 bar
Min. medium temperature
-40 °C
Max. medium temperature
60 °C
Min. ambient temperature
-40 °C
Max. ambient temperature
60 °C
Valve body
aluminium
Piston
nickel-plated aluminium
Sealant
NBR
Spring
special steel
Manual control
latching
Description
3/2-way valve low temp., electropneumatic, bistable, G 1/8
Series
series 70 low temperature
Manufacturer Art. No.
70L1020100
Manufacturer/brand
Metal Work
Class name
PLUS
Page No.
WEB
Customs tariff number
84818079
Country of origin
IT
Downloads
Variants
| Art. No. | Type No. | Attributes | Function | Connection | Voltage | Scope of delivery | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|
| 150081 | 517.TT.52.14.B.110A | 5/2 bistable | G 1/4 IT | 110 V AC | with connector and coil | You can see the exact availability after logging in | €199.43 List price: €199.43 / piece Your price: €199.43 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 150066 | 517.TT.52.14.M.110A | 5/2 monostable | G 1/4 IT | 110 V AC | with connector and coil | You can see the exact availability after logging in | €135.18 List price: €135.18 / piece Your price: €135.18 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 150072 | 517.TT.52.14.B.230A | 5/2 bistable | G 1/4 IT | 230 V AC | with connector and coil | You can see the exact availability after logging in | €199.43 List price: €199.43 / piece Your price: €199.43 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 150077 | 517.TT.52.18.B.24A | 5/2 bistable | G 1/8 IT | 24 V AC | with connector and coil | You can see the exact availability after logging in | €179.11 List price: €179.11 / piece Your price: €179.11 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 149934 | 70L2020200 | 3/2 NC | G 1/4 IT | without voltage | without connector and coil | You can see the exact availability after logging in | €106.61 List price: €106.61 / piece Your price: €106.61 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 150069 | 517.TT.52.14.B.24D | 5/2 bistable | G 1/4 IT | 24 V DC | with connector and coil | You can see the exact availability after logging in | €199.43 List price: €199.43 / piece Your price: €199.43 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 150058 | 517.TT.52.38.M.230A | 5/2 monostable | G 3/8 IT | 230 V AC | with connector and coil | You can see the exact availability after logging in | €217.50 List price: €217.50 / piece Your price: €217.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 150079 | 517.TT.52.38.B.24A | 5/2 bistable | G 3/8 IT | 24 V AC | with connector and coil | You can see the exact availability after logging in | €283.95 List price: €283.95 / piece Your price: €283.95 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
