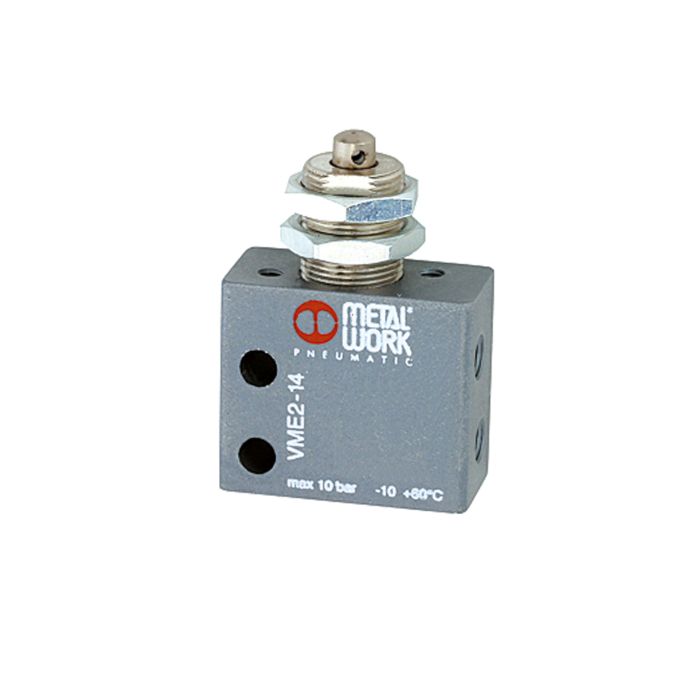

3/2-way mini valve, Mechanical, Tappet panel mounting,NC 4mm side
In stock
SKU
106389
Customer product code
Type Number
511.151
Article name from customer
EAN-Code
4047322096133
3/2-way miniature valve, Mechanical, Tappet panel mounting, NC, 4 mm side, Op... More
Productdata
3/2-way miniature valve, Mechanical, Tappet panel mounting, NC, 4 mm side, Operating pre. 0.5-10 bar, Operating temp.-10°C to 60°C
Miniature valves, 3/2-way type, NC or NO.
Article No.
106389
Type No.
511.151
Operation
mechanical
Function
3/2 NC
Version
plunger for panel mounting
Connection
plug-in connector Ø 4 mm on side
Nominal Ø
2.5 mm
Flow rate measurement 1
flow rate at 6 bar and Δp 1 bar
Flow rate 1
60 Nl/min
Flow rate measurement 2
flow rate at 6 bar and Δp 0.5 bar
Flow rate 2
35 Nl/min
Medium
filtered compressed air with or without lubrication. If lubricated, then continuous.
Min. operating pressure
0.5 bar
Max. operating pressure
10 bar
Operating pressure at 6 bar
8 N
Min. operating temperature
-10 °C
Max. operating temperature
60 °C
Valve body
aluminium
Sealant
NBR
Spring
stainless steel
Pushbutton
nickel-plated brass
Series
series VME
Manufacturer Art. No.
W3501001401
Manufacturer/brand
Metal Work
Class name
PLUS
Page No.
HK416
Customs tariff number
84818079
Country of origin
IT
Downloads
Variants
| Art. No. | Type No. | Attributes | Function | Version | Connection | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|
| 106385 | 511.121 | 3/2 NO | plunger | plug-in connector Ø 4 mm on side | ||||
| 106391 | 511.171 | 3/2 NC | roller lever with free return | plug-in connector Ø 4 mm on side | You can see the exact availability after logging in | €28.10 List price: €28.10 / piece Your price: €28.10 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 106396 | 511.194 | 3/2 NC | roller lever | M5 IT on side | ||||
| 106386 | 511.122 | 3/2 NO | plunger | M5 IT on side | You can see the exact availability after logging in | €23.92 List price: €23.92 / piece Your price: €23.92 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 106393 | 511.191 | 3/2 NO | roller lever | plug-in connector Ø 4 mm on side | ||||
| 106392 | 511.172 | 3/2 NC | roller lever with free return | M5 IT on side | You can see the exact availability after logging in | €27.57 List price: €27.57 / piece Your price: €27.57 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 106390 | 511.152 | 3/2 NC | plunger for panel mounting | M5 IT on side | ||||
| 106388 | 511.132 | 3/2 NC | plunger | M5 IT on side | You can see the exact availability after logging in | €21.89 List price: €21.89 / piece Your price: €21.89 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
