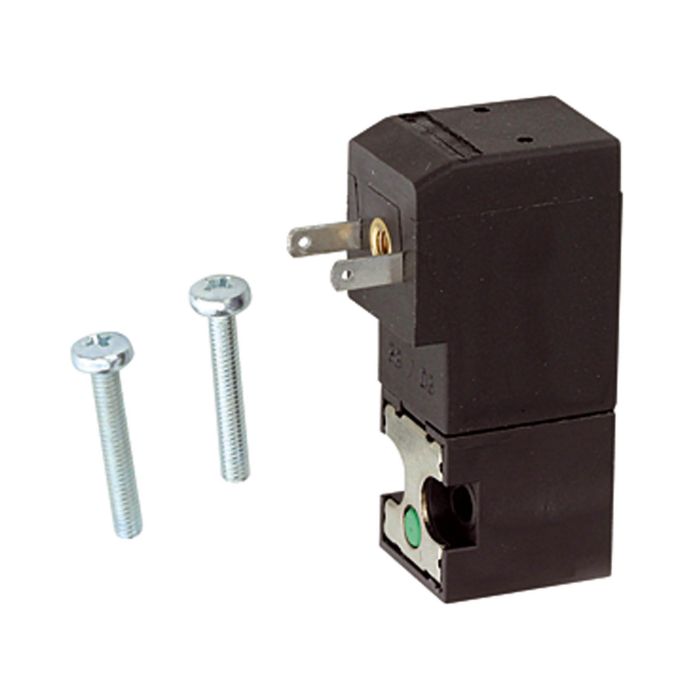

3/2-way mini solenoid valve directly controlled, NC, 24 VDC

(List price: €29.56)

€29.56

(€29.56 / piece)

excl. VAT and shipping

In stock

SKU

106643

Type Number

MV 1051.3

EAN-Code

4047322156516

3/2-way mini solenoid valve directly controlled, DN 1.5 mm, NC, 24VDC, for eq... More

Free delivery from 75€ order value*

(€29.56 / piece)

Productdata

Downloads

Variants

accessories

Productdata

3/2-way mini solenoid valve directly controlled, DN 1.5 mm, NC, 24VDC, for equipment plug, Pressure 0-7 bar, Temp. -10 °C to 50 °C

Directly controlled 3/2-way solenoid valves specially designed for pneumatic applications. These valves are provided with a flange for assembly on an individual base or multiple manifold base. They feature a monostable manual operator. The scope of supply includes two fixing bolts and a flange gasket. The coils can be turned 180°.

Article No.

106643

Type No.

MV 1051.3

Operation

electric

Type of construction

directly controlled

Function

3/2 NC

Version

for plug connector

Connection

flange

Voltage

24 V DC

Coil power

2.5 W

Pilot air supply

no (directly controlled)

Scope of delivery

without connector, with 2 screws and 1 flange gasket

Plate on manual operator

Silver

Opening and closing times

10 to 12 ms (depending on pressure)

Switching frequency

max. 2400/min

Nominal Ø

1.5 mm

Flow rate measurement

flow rate at 6 bar and Δp 1 bar

Flow rate

50 Nl/min

Medium

filtered, unlubricated compressed air

Min. operating pressure

0 bar

Max. operating pressure

7 bar

Min. temperature range

-10 °C

Max. temperature range

50 °C

Material

plastic

Sealant

FPM

Manual control

non-latching

Applications

For assembly on manifold base

Width

15 mm

Height

42 mm

Series

MMV15

Class name

PLUS

Page No.

HK432

Customs tariff number

84812090

Country of origin

Downloads

Datasheet

CAD data

Variants

Art. No.	Type No.	Attributes	Function	Connection	Voltage	Availability
106646	MV 1061.2	3/2 NO	flange	24 V DC	You can see the exact availability after logging in	€31.40 List price: €31.40 / piece Your price: €31.40 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€31.40 / piece) excl. VAT and shipping You can see the exact availability after logging in
106647	MV 1061.3	3/2 NO	flange	24 V DC	You can see the exact availability after logging in	€29.56 List price: €29.56 / piece Your price: €29.56 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€29.56 / piece) excl. VAT and shipping You can see the exact availability after logging in
106648	MV 1062.2	3/2 NO	flange	12 V DC	You can see the exact availability after logging in	€31.40 List price: €31.40 / piece Your price: €31.40 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€31.40 / piece) excl. VAT and shipping You can see the exact availability after logging in
106642	MV 1051.2	3/2 NC	flange	24 V DC	You can see the exact availability after logging in	€31.40 List price: €31.40 / piece Your price: €31.40 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€31.40 / piece) excl. VAT and shipping You can see the exact availability after logging in
106644	MV 1052.2	3/2 NC	flange	12 V DC	You can see the exact availability after logging in	€31.40 List price: €31.40 / piece Your price: €31.40 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€31.40 / piece) excl. VAT and shipping You can see the exact availability after logging in
106645	MV 1052.3	3/2 NC	flange	12 V DC	You can see the exact availability after logging in	€29.56 List price: €29.56 / piece Your price: €29.56 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€29.56 / piece) excl. VAT and shipping You can see the exact availability after logging in
106649	MV 1062.3	3/2 NO	flange	12 V DC	You can see the exact availability after logging in	€29.56 List price: €29.56 / piece Your price: €29.56 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€29.56 / piece) excl. VAT and shipping You can see the exact availability after logging in
