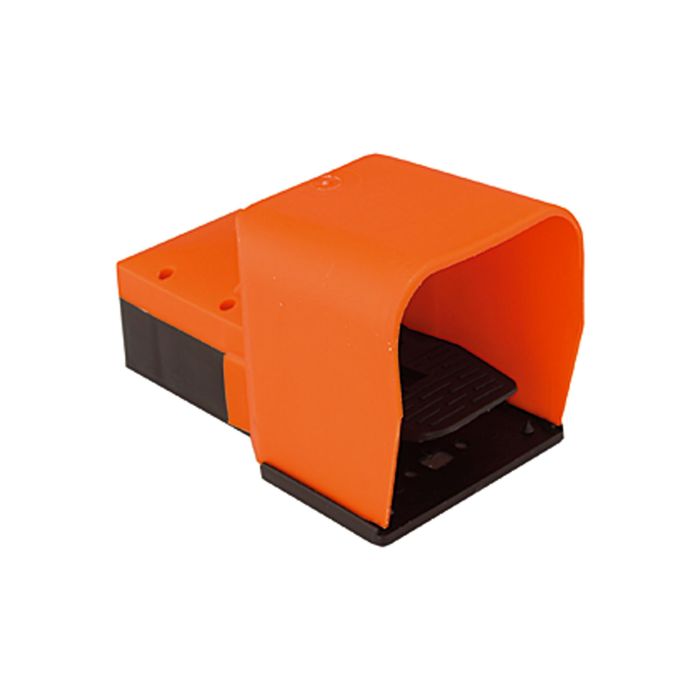

3/2-way foot valve, monostable, non-engaging with foot guard 4 mm
(List price: €66.82)
€66.82
List price:
€66.82 / piece
Your price:
€66.82 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
106665
Customer product code
Type Number
513.103
Article name from customer
EAN-Code
4047322096553
3/2-way foot valve, monostable, non-engaging with foot guard, Connection 4 mm... More
You can see the exact availability after logging in
List price:
€66.82 / piece
Your price:
€66.82 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata
3/2-way foot valve, monostable, non-engaging with foot guard, Connection 4 mm, Operating pressure 2.5-10 bar, Temp. -10°C to 60°C
Foot-operated valves, 3/2- and 5/2-way types, bistable or monostable (non-latching).
Article No.
106665
Type No.
513.103
Operation
manually
Function
3/2 NC
Version
foot pedal
Connection
plug connector Ø 4 mm
Flow rate measurement 1
flow rate at 6.3 bar and Δp 1 bar
Flow rate 1
95 Nl/min
Flow rate measurement 2
flow rate at 6.3 bar and Δp 0.5 bar
Flow rate 2
60 Nl/min
Medium
filtered compressed air with or without lubrication. If lubricated, then continuous.
Min. operating pressure
2.5 bar
Max. operating pressure
10 bar
Min. temperature range
-10 °C
Max. temperature range
60 °C
Series
series PEV
Manufacturer Art. No.
W3120000321
Manufacturer/brand
Metal Work
Class name
PLUS
Page No.
HK434
Customs tariff number
84818079
Country of origin
IT
REACH SVHC1 substance name
Lead
CAS no. SVHC 1
7439-92-1
RoHS materials notice
RoHS compliant
REACH Info
contains SVHC substance
Downloads
Variants
| Art. No. | Type No. | Attributes | Function | Connection | Availability | Price | Options |
|---|---|---|---|---|---|---|---|
| 106662 | 513.100 | 3/2 NC | M5 IT | You can see the exact availability after logging in | €40.71 List price: €40.71 / piece Your price: €40.71 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 106667 | 513.105 | 3/2 bistable | plug connector Ø 4 mm | You can see the exact availability after logging in | €71.91 List price: €71.91 / piece Your price: €71.91 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 106669 | 513.107 | 5/2 bistable | G 1/4 IT | You can see the exact availability after logging in | €95.57 List price: €95.57 / piece Your price: €95.57 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 106663 | 513.101 | 3/2 NC | plug connector Ø 4 mm | You can see the exact availability after logging in | €44.66 List price: €44.66 / piece Your price: €44.66 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 106664 | 513.102 | 3/2 NC | M5 IT | You can see the exact availability after logging in | €62.85 List price: €62.85 / piece Your price: €62.85 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 106666 | 513.104 | 3/2 bistable | M5 IT | You can see the exact availability after logging in | €67.98 List price: €67.98 / piece Your price: €67.98 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 106668 | 513.106 | 5/2 monostable | G 1/4 IT | You can see the exact availability after logging in | €95.57 List price: €95.57 / piece Your price: €95.57 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
