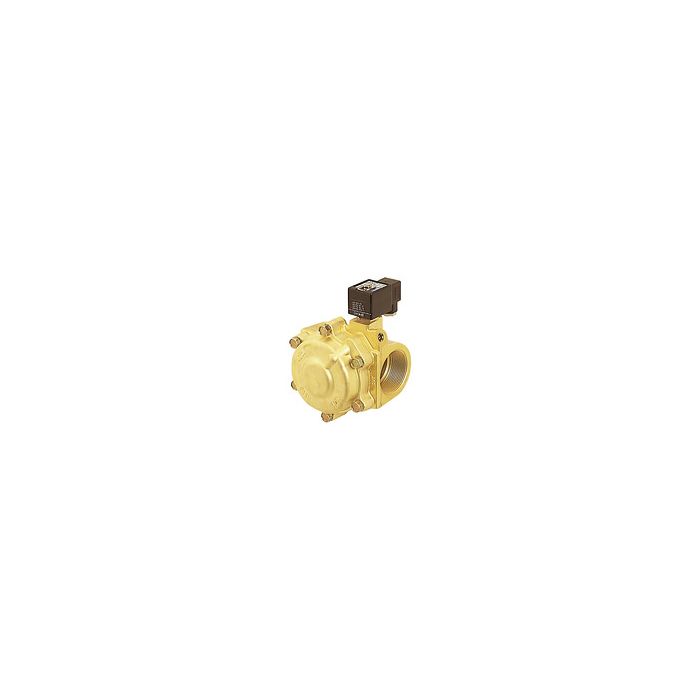

2/2-way solenoid valve, NC, pilot operated, 24 V DC, Rp 2
In stock
SKU
102879
Customer product code
Type Number
MV 1222 G
Article name from customer
EAN-Code
4047322157803
2/2-way solenoid valve brass, NC, pilot operated, 24 V DC, Medium temperature... More
Productdata
2/2-way solenoid valve brass, NC, pilot operated, 24 V DC, Medium temperature -20 °C to 85 °C, Rp 2, PN 0.35 - 3 bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Article No.
102879
Type No.
MV 1222 G
Thread
Rp 2
Min. operating pressure
0.35 bar
Max. operating pressure
3 bar
Voltage
24 V DC
Housing
brass
Valve seat
brass
Internal parts
stainless steel
Sealant
NBR
Min. medium temperature
-20 °C
Max. medium temperature
85 °C
Min. ambient temperature
-20 °C
Max. ambient temperature
50 °C
Protection IP
IP 65 (with connector socket fitted)
Electrical connection
ISO 4400, cable socket (PG 11 P)
Function
normally closed (NC)
Type
5
Standard thread
ISO 7-1
DN
44 mm
A
80 mm
B
129 mm
Manufacturer Art. No.
SCE210-100.24/DC
Manufacturer type
210 Solenoid Valve
Manufacturer/brand
ASCO
Class name
MAX
Page No.
HK330
Customs tariff number
84812090
Country of origin
DE
Downloads
Variants
| Art. No. | Type No. | Attributes | Thread | Voltage | Type | DN | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|
| 102867 | MV 1216 G | Rp 3/8 | 24 V DC | 3 | 16 | ||||
| 102869 | MV 1217 G | Rp 1/2 | 24 V DC | 3 | 16 | ||||
| 102871 | MV 1218 G | Rp 3/4 | 24 V DC | 3 | 19 | ||||
| 102874 | MV 1229 G | Rp 1 | 24 V DC | 4 | 25 | ||||
| 102870 | MV 1227 G | Rp 1/2 | 24 V DC | 3 | 16 | ||||
| 102873 | MV 1219 G | Rp 1 | 24 V DC | 4 | 25 | ||||
| 102877 | MV 1221 G | Rp 1 1/2 | 24 V DC | 5 | 32 | ||||
| 102868 | MV 1226 G | Rp 3/8 | 24 V DC | 3 | 16 |
